Components [09/2020 - ]
Fig 1: Door Control Receiver Replacement Components With Torque Specifications [09/2020 - ] (1 Of 2)
| *1 | REAR SEAT CUSHION ASSEMBLY | *2 | REAR SEAT CUSHION LOCK HOOK |
| *3 | REAR SIDE SEATBACK ASSEMBLY LH | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

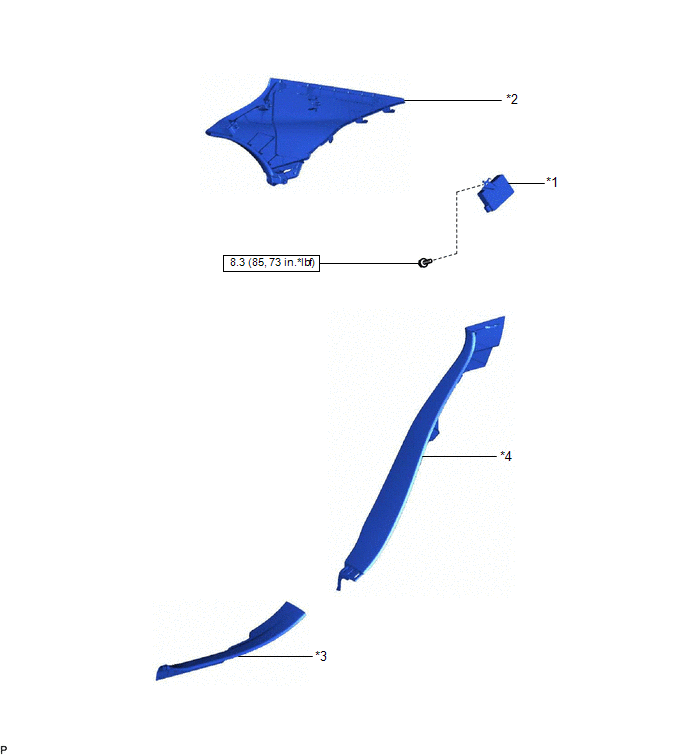

Fig 2: Door Control Receiver Replacement Components With Torque Specifications [09/2020 - ] (2 Of 2)
| *1 | ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY | *2 | INNER ROOF SIDE GARNISH ASSEMBLY LH |
| *3 | REAR DOOR SCUFF PLATE LH | *4 | REAR SEAT SIDE GARNISH LH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
