Terminals Of ECM [10/2016 - 10/2017]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard voltage between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals are also indicated.

The result of checks should be compared with the standard voltage for that pair of terminals, and displayed in the "Specified Condition" column.

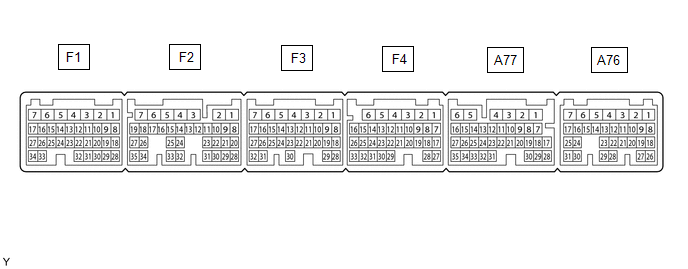

The illustration above can be used as a reference to identify the ECM terminal locations.

1. *1: The ECM terminal voltage is constant regardless of the output voltage from the sensor.
2. *2: for 2WD models.

1. WAVEFORM 1
   Fig 1: Waveform 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT) OPERATION SIGNAL



   ECM Terminal Name	Between OC1+ and OC1-, or OC2+ and OC2-
   Tester Range	5 V/DIV., 1 ms./DIV.
   Condition	Idling

2. WAVEFORM 2
   Fig 2: Waveform 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR EXHAUST CAMSHAFT) OPERATION SIGNAL



   ECM Terminal Name	Between OE1+ and OE1-, or OE2+ and OE2-
   Tester Range	5 V/DIV., 1 ms./DIV.
   Condition	Idling

3. WAVEFORM 3
   Fig 3: Waveform 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   AIR FUEL RATIO SENSOR (SENSOR 1) HEATER OPERATION SIGNAL



   ECM Terminal Name	Between HA1A and E04, or HA2A and E05
   Tester Range	5 V/DIV., 10 ms./DIV.
   Condition	Idling

4. WAVEFORM 4
   Fig 4: Waveform 4

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   HEATED OXYGEN SENSOR (SENSOR 2) SIGNAL



   ECM Terminal Name	Between OX1B and E2, or OX2B and E2
   Tester Range	0.2 V/DIV., 200 ms./DIV.
   Condition	Engine speed maintained at 2500 rpm for 2 minutes after warming up engine

   HINT:

   In the Data List, item O2S B1S2 and O2S B2S2 shows the ECM values from the heated oxygen sensor.

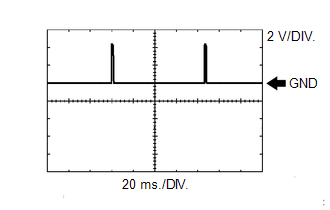

5. WAVEFORM 5
   Fig 5: Waveform 5

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   FUEL INJECTOR ASSEMBLY (FOR DIRECT INJECTION) SIGNAL



   ECM Terminal Name	Between #1 (to #6) and E1
   Tester Range	2 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   • The wavelength becomes shorter as the engine speed increases.
   • When the direct injection injectors are operating, Direct is displayed for Injection Way of the Data List.
6. WAVEFORM 6
   Fig 6: Waveform 6

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   FUEL INJECTOR ASSEMBLY (FOR PORT INJECTION) SIGNAL



   ECM Terminal Name	Between #10 (to #60) and E01
   Tester Range	20 V/DIV., 20 ms./DIV.
   Condition	Idling, engine coolant temperature 60°C or less

   HINT:

   • The wavelength becomes shorter as the engine speed increases.
   • When the port injection injectors are operating, Port is displayed for Injection Way of the Data List.
7. WAVEFORM 7
   Fig 7: Waveform 7

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   KNOCK CONTROL SENSOR SIGNAL



   ECM Terminal Name	Between KNK1 and EKNK, or KNK2 and EKN2
   Tester Range	1 V/DIV., 1 ms./DIV.
   Condition	Engine speed maintained at 4000 rpm after warming up engine

   HINT:

   • The wavelength becomes shorter as the engine speed increases.
   • The waveforms and amplitudes displayed differ slightly depending on the vehicle condition.
8. WAVEFORM 8
   Fig 8: Waveform 8

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CRANKSHAFT POSITION SENSOR SIGNAL AND VVT SENSOR (FOR INTAKE CAMSHAFT) SIGNAL



   ECM Terminal Name	Between NE+ and NE- Between VV1+ and VV1- Between VV2+ and VV2-
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

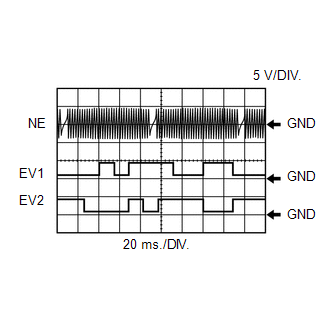

9. WAVEFORM 9
   Fig 9: Waveform 9

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CRANKSHAFT POSITION SENSOR SIGNAL AND VVT SENSOR (FOR EXHAUST CAMSHAFT) SIGNAL



   ECM Terminal Name	Between NE+ and NE- Between EV1+ and EV1- Between EV2+ and EV2-
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

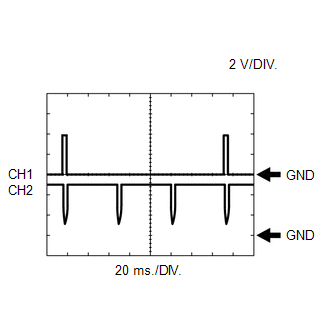

10. WAVEFORM 10
    Fig 10: Waveform 10

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    IGNITION COIL ASSEMBLY SIGNAL (IGT AND IGF SIGNAL)



    ECM Terminal Name	CH1: IGT1, 3 or 5 and E1 CH2: IGF1 and E1
    	CH1: IGT2, 4 or 6 and E1 CH2: IGF2 and E1
    Tester Range	2 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

11. WAVEFORM 11
    Fig 11: Waveform 11

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    PURGE VSV OPERATION SIGNAL



    ECM Terminal Name	Between PRG and E1
    Tester Range	10 V/DIV., 20 ms./DIV.
    Condition	Idling, under purge control

    HINT:

    If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

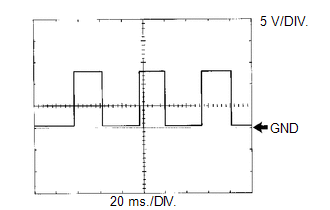

12. WAVEFORM 12
    Fig 12: Waveform 12

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    VEHICLE SPEED SIGNAL



    ECM Terminal Name	Between SPD and E1
    Tester Range	5 V/DIV., 20 ms./DIV.
    Condition	Driving at 20 km/h (12 mph)

    HINT:

    The wavelength becomes shorter as the vehicle speed increases.

13. WAVEFORM 13
    Fig 13: Waveform 13

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR POSITIVE TERMINAL SIGNAL



    ECM Terminal Name	Between M+ and ME01
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

14. WAVEFORM 14
    Fig 14: Waveform 14

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR NEGATIVE TERMINAL SIGNAL



    ECM Terminal Name	Between M- and ME01
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

15. WAVEFORM 15
    Fig 15: Waveform 15

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE SPEED SIGNAL



    ECM Terminal Name	Between TACH and E1
    Tester Range	5 V/DIV., 10 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

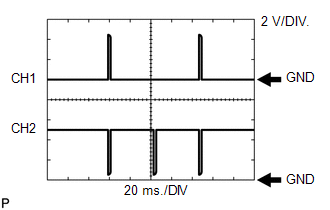

16. WAVEFORM 16
    Fig 16: Waveform 16

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    FUEL INJECTOR ASSEMBLY (FOR DIRECT INJECTION) SIGNAL AND INJECTION CONFIRMATION SIGNAL



    ECM Terminal Name	CH1: Between #1 or #4 and E1 CH2: Between INJ1 and E1
    	CH1: Between #2 or #5 and E1 CH2: Between INJ2 and E1
    	CH1: Between #3 or #6 and E1 CH2: Between INJ3 and E1
    Tester Range	2 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    • The wavelength becomes shorter as the engine speed increases.
    • When the direct injection injectors are operating, Direct is displayed for Injection Way of the Data List.

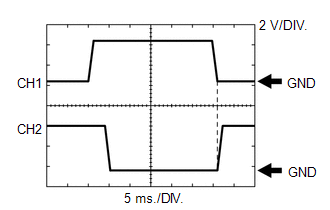

17. WAVEFORM 17
    Fig 17: Waveform 17

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    FUEL PUMP FOR HIGH PRESSURE SIDE SIGNAL (SPILL CONTROL VALVE)



    ECM Terminal Name	CH1: Between FPD and E1 CH2: Between FPF1 and E1
    Tester Range	2 V/DIV., 5 ms./DIV.
    Condition	Idling with warm engine

18. WAVEFORM 18
    Fig 18: Waveform 18

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL (REFERENCE)



    ECM Terminal Name	Between CANH and E1 Between CAN+ and E1
    Tester Range	1 V/DIV., 10 μs./DIV.
    Condition	Engine switch on (IG)

    HINT:

    The waveform varies depending on the CAN communication signal.

19. WAVEFORM 19
    Fig 19: Waveform 19

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL (REFERENCE)



    ECM Terminal Name	Between CANL and E1 Between CAN- and E1
    Tester Range	1 V/DIV., 10 μs./DIV.
    Condition	Engine switch on (IG)

    HINT:

    The waveform varies depending on the CAN communication signal.

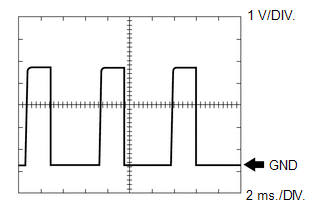

20. WAVEFORM 20
    Fig 20: Waveform 20

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE SPEED SIGNAL



    ECM Terminal Name	Between NEO and E1
    Tester Range	1 V/DIV., 2 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

21. WAVEFORM 21
    COOLING FAN CONTROL SIGNAL



    ECM Terminal Name	Between RFC and E1
    Tester Range	1 V/DIV., 20 ms./DIV.
    Condition	Engine switch on (IG), A/C switch on (max cool)

    HINT:

    The duty ratio varies depending on the engine coolant temperature.

    Fig 21: Waveform 21

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
