Removal [04/2013 - ]: Procedure

  1. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)

    Refer to PROCEDURE - Step 2 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 2 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 2 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 2 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - ]

  2. REMOVE STEERING COLUMN COVER (for Manual Tilt and Manual Telescopic Steering Column)
    NOTE:

    Removing the steering column cover (lower) in the incorrect order will cause the parts to break.

    1. Release the tilt and telescopic lever, and fully extend and lower the steering column assembly.
    2. Lock the tilt and telescopic lever.
    3. Turn the steering wheel assembly to the left and remove the screw.
      GTY464652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

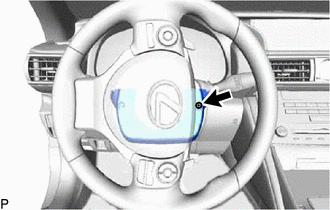

    4. Turn the steering wheel assembly to the right and remove the screw.
      GTY470382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

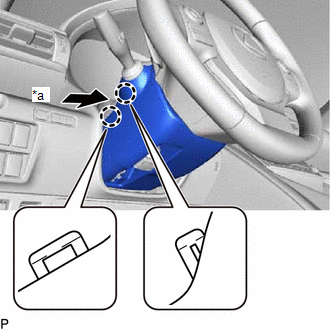

    5. Push the left side of the steering column cover (lower) to disengage the 2 claws as shown in the illustration.
      GTY459031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Push

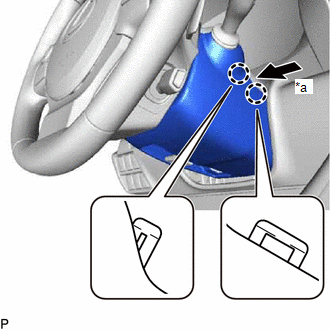

    6. Push the right side of the steering column cover (lower) to disengage the 2 claws as shown in the illustration.
      GTY471080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Push

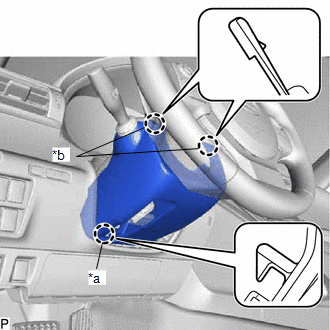

    7. Insert your fingers into the opening of the tilt lever of the steering column cover (lower) to disengage the claw <A>.
      GTY461036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw <A>
      *b Claw <B>

      HINT:

      Spread the claw to disengage it.

    8. Disengage the 2 claws <B> to remove the steering column cover (lower).

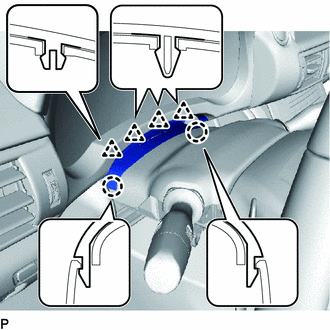

    9. Disengage the 2 claws and 4 clips to separate the instrument cluster finish panel assembly from the steering column cover (upper).
      GTY433239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

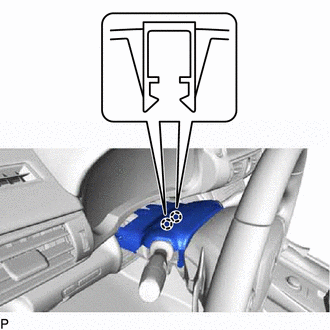

    10. Disengage the 2 claws to remove the steering column cover (upper).
      GTY433238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic Steering Column)

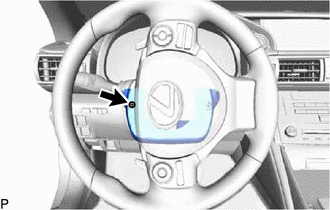

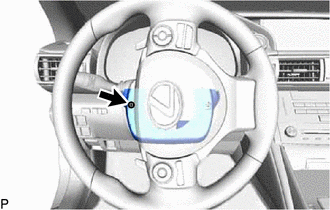

    1. Turn the steering wheel assembly to the left and remove the screw.
      GTY464649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the steering wheel assembly to the right and remove the screw.
      GTY464648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

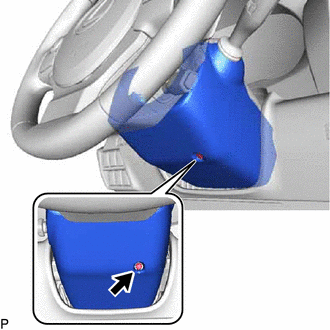

    3. Remove the screw.
      GTY470369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

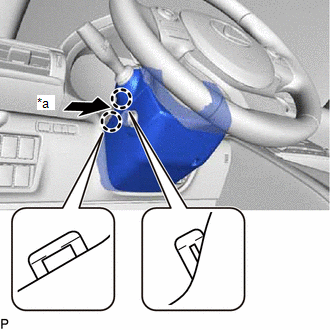

    4. Push the left side of the steering column cover (lower) to disengage the 2 claws as shown in the illustration.
      GTY468947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Push

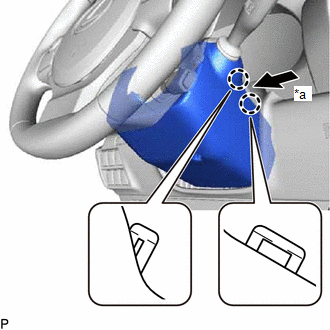

    5. Push the right side of the steering column cover (lower) to disengage the 2 claws as shown in the illustration.
      GTY470731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Push

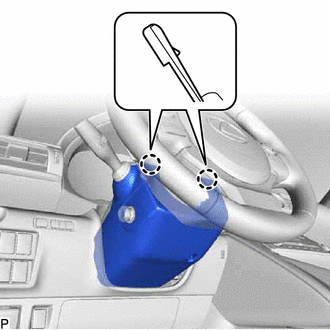

    6. Disengage the 2 claws.
      GTY464596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

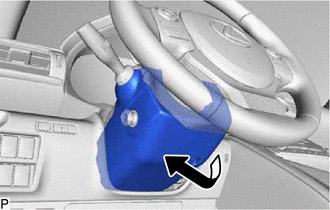

    7. Remove the steering column cover (lower) as shown in the illustration.
      GTY464597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Disengage the 2 claws and 4 clips to separate the instrument cluster finish panel assembly from the steering column cover (upper).
      GTY433239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Disengage the 2 claws to remove the steering column cover (upper).
      GTY433238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE TILT AND TELESCOPIC SWITCH (for Power Tilt and Power Telescopic Steering Column)

    Refer to PROCEDURE - Step 6

  5. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

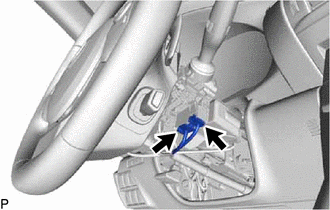

    1. Disconnect 2 connectors.
      GTY464600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

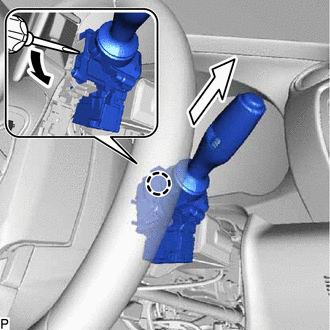

    2. Using a screwdriver, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.
      NOTE:

      If the claw is pulled with excessive force, it may break.

      GTY464601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
