Components [04/2013 - ]

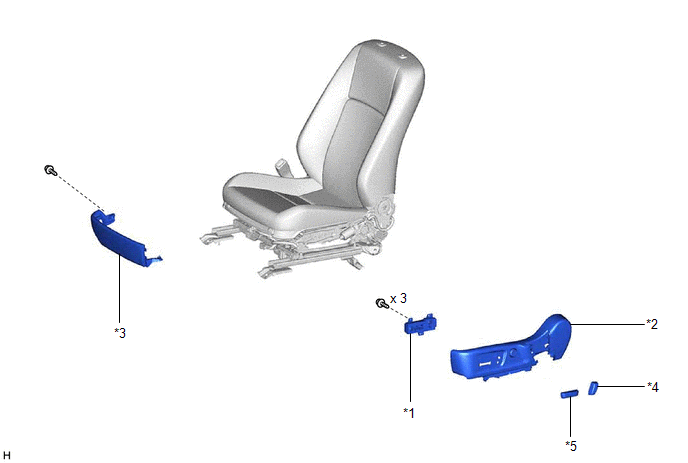

Fig 1: Power Seat Switch (w/ Seat Position Memory System) Replacement Components
GTY461260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT POWER SEAT SWITCH *2 FRONT SEAT CUSHION SHIELD
*3 FRONT SEAT INNER NO. 1 CUSHION SHIELD *4 RECLINING POWER SEAT SWITCH KNOB
*5 SLIDE AND VERTICAL POWER SEAT SWITCH KNOB - -
