System Description [04/2013 - 10/2016]

However, in the following conditions, the lane departure alert system may not function normally.

• When driving through an area with no lane markers, such as a tollbooth, a crossing or before a ticket checkpoint
• When driving on a sharp curve
• When lane markers are extremely narrow or extremely wide
• When the vehicle leans to one side an unusual amount due to a heavy load or improper tire inflation pressure
• When the following distance between your vehicle and the vehicle ahead is extremely short
• When the lane markers are yellow (These may be more difficult for the system to recognize compared to white markers.)
• When the lane markers are broken, Botts' dots (raised pavement markers) or stones
• When the lane markers are on a curb etc.
• When lane markers are obscured or partially obscured by sand, dirt, etc.
• When there are shadows on the road running parallel with lane markers, or if a shadow covers the lane markers
• When driving on a particularly bright road surface, such as concrete
• When driving on a road surface that is bright due to reflected light
• When driving in a location where the light level changes rapidly, such as the entrance to or exit from a tunnel
• When sunlight or the headlights of oncoming vehicles are shining directly into the camera lens
• When driving on roads that are branching or merging
• When driving on a road surface that is wet due to rain, previous rainfall, standing water, etc.
• When the vehicle experiences strong up-and-down motion such as when driving on an extremely rough road or on a seam in the pavement
• When headlight brightness at nighttime is reduced due to dirt on the lenses, or when the headlights are misaligned
• When driving on winding roads or roads that are uneven
• When driving on rough or unpaved roads

The lane departure warning function operates when the lane departure alert main switch is on, the vehicle speed is between 50 km/h (32 mph) and 200 km/h (124 mph), and lane markers on the road surface are detected. With the departure warning function operating, if the vehicle is about to move out of the lane and this is detected by the lane departure warning camera, the system uses the warning buzzer and the multi-information display to warn the driver.

HINT:

This function only provides suggestions for lane departure avoidance. This function does not automatically move the vehicle back into the lane.

1. If any of the following conditions are met while the lane departure alert system is operating, system operation will be interrupted.

   Lane Departure Warning Function Operation Interruption Condition	Lane Departure Warning Function Operation Return Condition
   When vehicle speed is less than 45 km/h (28 mph), or more than 200 km/h (124 mph)	When vehicle speed is between 50 km/h (32 mph) and 200 km/h (124 mph)
   When turn signal light switch is operated	When turn signal light switch is turned off
   When lane departure warning camera cannot detect lane markers	When lane departure warning camera can detect lane markers
   After lane departure warning has been issued	When the vehicle moves back into its lane, or a few seconds have passed since warning was issued

2. If any of the following conditions are met while the lane departure alert system is operating, system operation will be suspended.

   Lane Departure Warning Function Operation Suspension Condition	Lane Departure Warning Function Operation Restart Condition
   When lane departure alert main switch is turned off	When lane departure alert main switch is turned on
   When system operation is interrupted	When the system returns to normal
   When the system is malfunctioning	When the engine switch is turned on (IG), normal system operation is confirmed

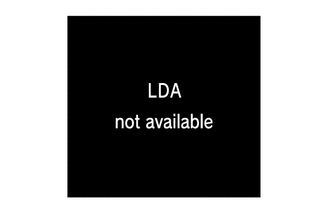

3. If the following condition is met, the lane departure warning camera sounds a warning buzzer, turns off the lane departure alert indicator, displays "LDA not available" on the multi-information display, and temporarily suspends lane departure alert system operation.
   • A high lane departure warning camera temperature is detected.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

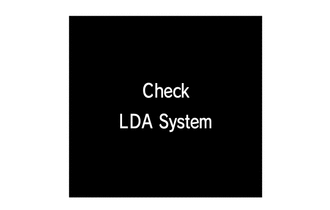

4. If the following condition is met, the lane departure warning camera sounds a warning buzzer, turns off the lane departure alert indicator, displays "Check LDA System" on the multi-information display, and suspends lane departure alert system operation.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • Lane departure alert system is malfunctioning
