Can Communication System
>>
Radio Receiver Assembly Communication Stop Mode [04/2013 - 10/2016]
>>

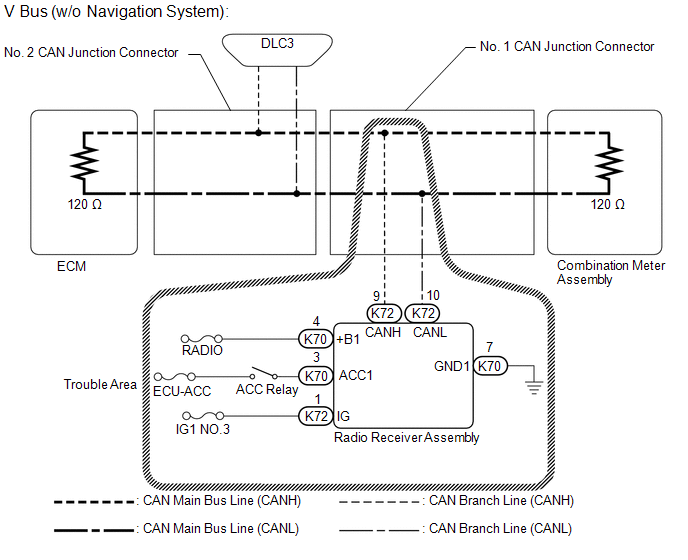

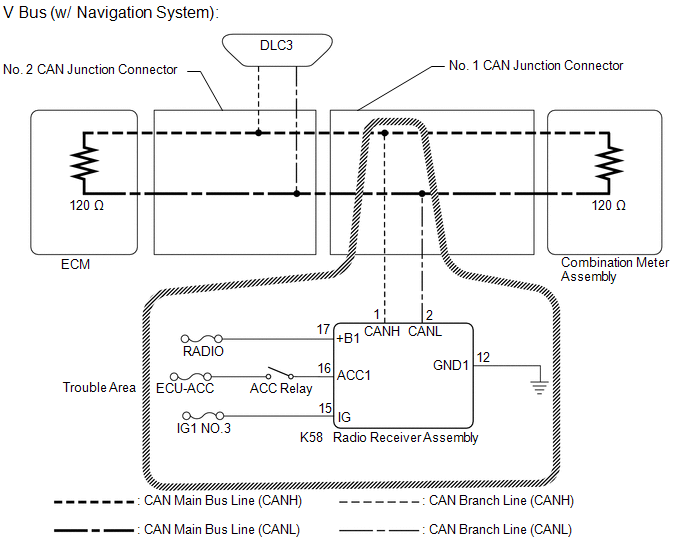

Wiring Diagram
Radio Receiver Assembly Communication Stop Mode [04/2013 - 10/2016]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
