Installation [09/2016 - ]: Procedure

  1. INSTALL ACCELERATION SENSOR BRACKET
    1. Install the acceleration sensor bracket with the bolt and nut.

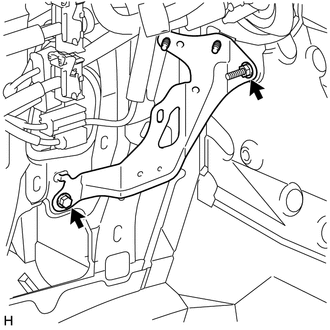

      GTY676226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    2. Attach the clip to connect the connector holder.

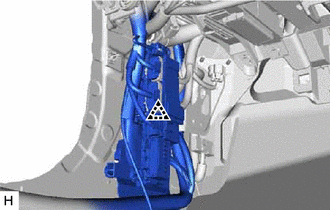

      GTY645174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT ACCELERATION SENSOR ASSEMBLY
    1. Install the front acceleration sensor assembly with the 2 nuts.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE:
      • Do not drop the sensor. If it is dropped, replace it with a new one.
      • The acceleration sensor must not be placed upside down.

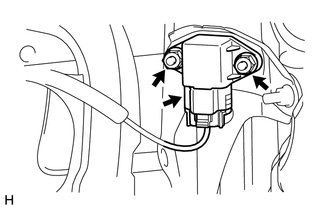

      GTY416490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
    3. Return the floor carpet to its original position.
  3. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [10/2015 - ]

  4. INSTALL FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 31

  5. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 33

  6. INSPECT ADAPTIVE VARIABLE SUSPENSION SYSTEM

    Refer to DTC CHECK / CLEAR [09/2016 - ]
