Removal [10/2015 - 09/2017]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [10/2015 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2015 - 09/2016] , or Refer to INITIALIZATION [09/2016 - 09/2017]
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE POWER STEERING ECU ASSEMBLY
Refer to REMOVAL [10/2015 - 09/2017]

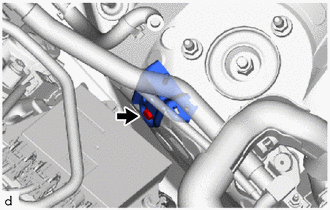

- REMOVE BATTERY TRAY

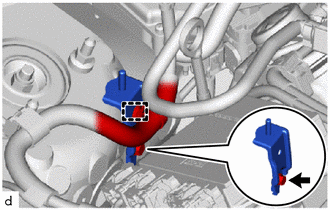

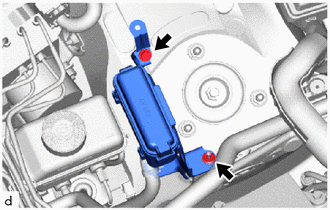

- SEPARATE NO. 1 ENGINE ROOM RELAY BLOCK

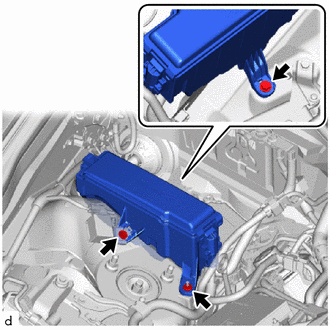

- SEPARATE NO. 3 ENGINE ROOM RELAY BLOCK

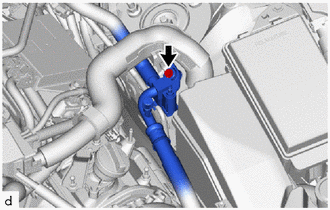

- SEPARATE SUCTION PIPE SUB-ASSEMBLY
- REMOVE IGNITION COIL ASSEMBLY
- Disconnect the 8 ignition coil assembly connectors.
- Remove the 8 bolts and 8 ignition coil assemblies from the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH.NOTE:
If an ignition coil assembly has been struck or dropped, replace it.
HINT:
Arrange the removed parts in the correct order.
- Disconnect the 8 ignition coil assembly connectors.
- REMOVE SPARK PLUG
Refer to PROCEDURE - Step 9
