Engine Room Relay Block No. 2 Front Fender Apron LH: Notes

For additional information, refer to Figure.

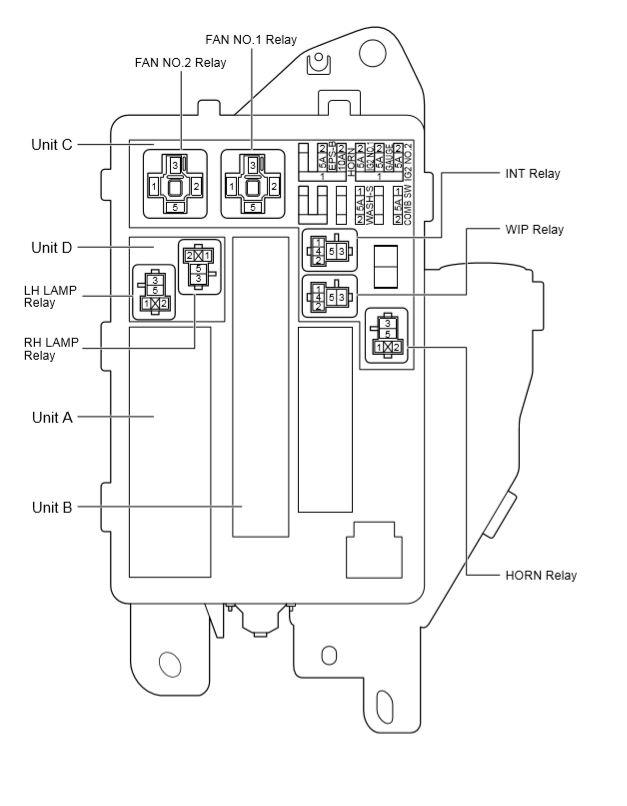

Fig 1: Engine Room R/B No. 2 Relay Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B NO. 2 RELAY IDENTIFICATION

RELAY DESCRIPTION
RH LAMP Relay
LH LAMP Relay
FAN NO. 2 Relay
FAN NO. 1 Relay
INT Relay
WIP Relay
HORN Relay

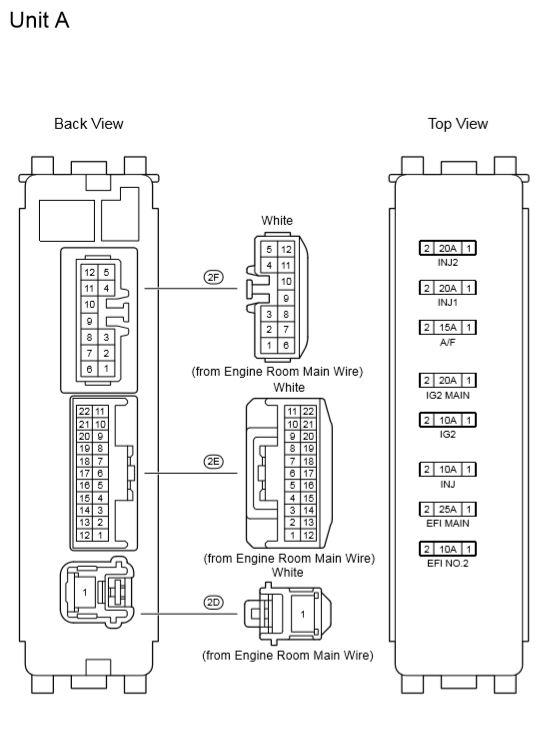

Fig 2: Engine Room R/B No. 2 Assembly Identification(Unit A)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

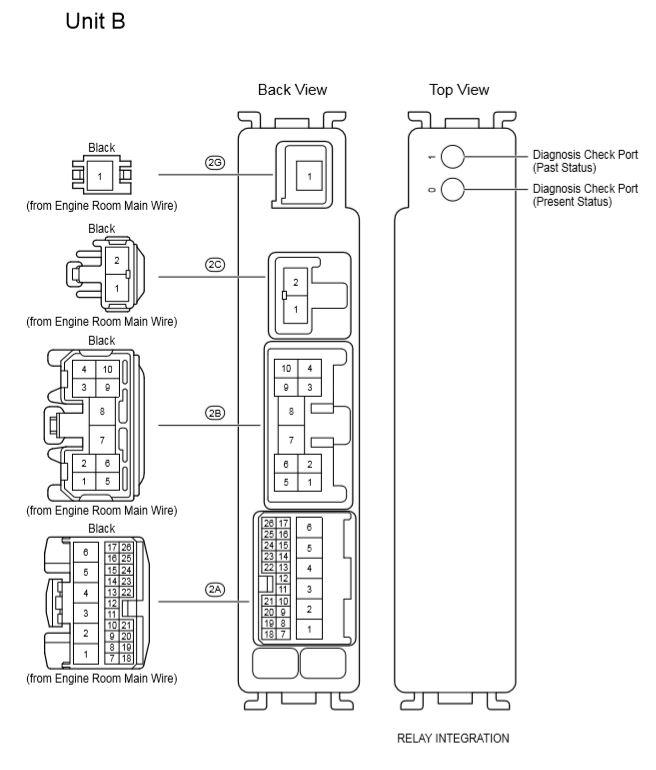

Fig 3: Engine Room R/B No. 2 Assembly Identification(Unit B)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B No. 2 Fuse Identification Legend

FUSE
5A	COMB SW
5A	EPS-B
5A	GAUGE
5A	IG2 NO. 1
5A	IG2 NO. 2
5A	WASH-S
10A	EFI NO. 1
10A	HORN
10A	IG2
10A	INJ
15A	A/F
20A	1G2 MAIN
20A	INJ1
20A	INJ2
25A	EFI MAIN
