Visual Mute Signal Circuit between Navigation Receiver Assembly and Multi-display [10/2015 - ]: Wiring Diagram

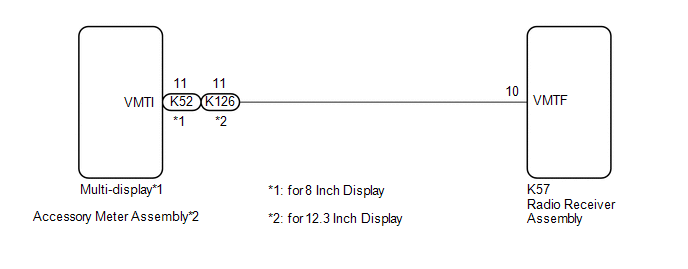

GTY675088

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
