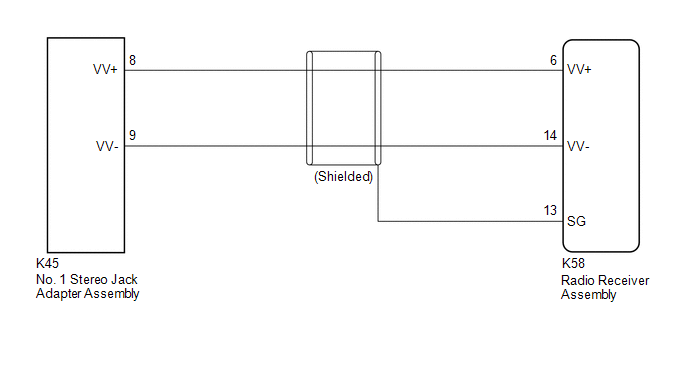

Display Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [10/2015 - ]: Wiring Diagram

GTY624323

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
