Removal [10/2015 - 09/2017]: Procedure

  1. REMOVE AIR CONDITIONING UNIT ASSEMBLY

    Refer to REMOVAL [10/2015 - 09/2017]

  2. REMOVE ID CODE BOX (IMMOBILIZER CODE ECU)

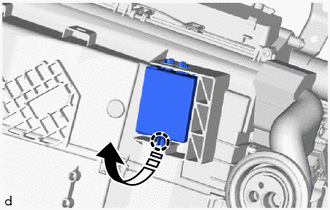

    1. Disengage the claw as shown in the illustration.
      GTY620750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

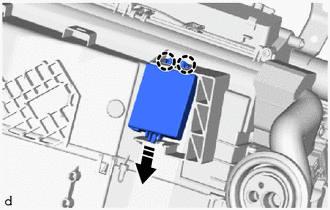

    2. Disengage the claws to remove the ID code box (immobilizer code ECU) as shown in the illustration.
      GTY672789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
