Installation [09/2014 - 10/2015]: Procedure

  1. INSTALL REAR NO. 1 ENGINE MOUNTING INSULATOR

    HINT:

    Only perform this procedure when replacement of the engine mounting insulator is necessary.

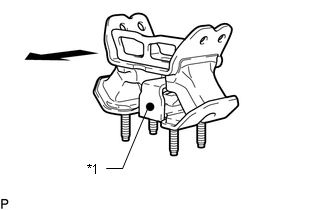

    1. Install the rear No. 1 engine mounting insulator to the hybrid vehicle transmission assembly with the 4 bolts.
      GTY400453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

      HINT:

      Make sure that the paint mark faces toward the rear of the vehicle.

      TEXT IN ILLUSTRATION

      *1 Paint Mark
      Rear of Vehicle
  2. INSTALL FRONT ENGINE MOUNTING INSULATOR

    HINT:

    Only perform this procedure when replacement of the engine mounting insulator is necessary.

    1. Install the front engine mounting insulator RH and LH with the 2 nuts.

      Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

  3. INSTALL ENGINE HANGER

    See step  77

  4. REMOVE ENGINE STAND
    1. Attach an engine sling device and hang the engine with a chain block.
      NOTE:

      Pay attention to the angle of the sling device as the engine assembly or engine hangers may be damaged or deformed if the angle is incorrect.

    2. Lift the engine and remove it from the engine stand.
      NOTE:

      With the exception of installing the engine assembly to an engine stand or removing the engine assembly from an engine stand, do not perform any work on the engine while it is suspended, as doing so is dangerous.

    3. Place the engine onto a work bench.
  5. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
    1. Install the front suspension crossmember sub-assembly with the 2 bolts.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  6. INSTALL FAN AND GENERATOR V BELT

    See step  1

  7. INSTALL COMPRESSOR WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  8. INSTALL FLYWHEEL SUB-ASSEMBLY

    See step  2

  9. INSTALL TRANSMISSION INPUT DAMPER COVER ASSEMBLY

    See step  3

  10. INSTALL HYBRID VEHICLE TRANSMISSION ASSEMBLY

    Refer to PROCEDURE - Step 3

  11. INSTALL FLYWHEEL HOUSING SIDE COVER

    Refer to PROCEDURE - Step 4

  12. INSTALL STARTER HOLE INSULATOR

    Refer to PROCEDURE - Step 5

  13. INSTALL TRANSMISSION BREATHER HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  14. INSTALL WATER PIPE AND HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  15. INSTALL OIL COOLER HOSE TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  16. CONNECT WIRE HARNESS

    Refer to PROCEDURE - Step 15

  17. CONNECT CONNECTOR

    Refer to PROCEDURE - Step 16

  18. INSTALL REAR ENGINE MOUNTING MEMBER
    1. Install the engine rear mounting member to the hybrid vehicle transmission assembly with the 4 nuts.

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

  19. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  20. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 3

  21. INSTALL ENGINE UNDER COVER SUB-ASSEMBLY LH
    1. Install the engine under cover sub-assembly LH.
  22. INSTALL ENGINE UNDER COVER SUB-ASSEMBLY RH
    1. Install the engine under cover sub-assembly RH.
  23. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Install a new O-ring to the engine oil level dipstick guide.
    2. Apply a light coat of engine oil to the O-ring.
    3. Push in the engine oil level dipstick guide end into the guide hole.
    4. Install the engine oil level dipstick guide with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  24. INSTALL NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 11

  25. INSTALL ENGINE AND TRANSMISSION ASSEMBLY
    1. Set the engine on an engine lifter.
      NOTE:
      • Place wooden blocks or plate lift attachments so that the engine is level.
      • With the exception of installing the engine assembly to an engine stand or removing the engine assembly from an engine stand, do not perform any work on the engine while it is suspended, as doing so is dangerous.
      • Never install attachments to the oil pan of the engine assembly or transmission as doing so may deform the oil pan.
    2. Remove the 4 bolts and 2 No. 1 engine hangers.
    3. Operate the engine lifter and install the engine to the vehicle.
      NOTE:

      Make sure that the engine is clear of all wiring and hoses.

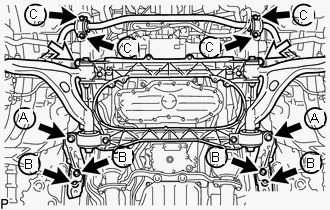

    4. Install the engine and transmission assembly with crossmember with the 6 bolts, 4 new bolts and 2 nuts.
      GTY536460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for bolt A

      Torque: 194 N*m (1978 kgf*cm, 143 ft.*lbf)

      for bolt B

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

      for bolt C

      Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

      for nut

      Torque: 151 N*m (1540 kgf*cm, 111 ft.*lbf)

      TEXT IN ILLUSTRATION

      Bolt
      Nut
    5. Install the rear engine mounting member with the 4 bolts.

      Torque: 35 N*m (354 kgf*cm, 26 ft.*lbf)

    6. Connect the wire harness with the nut.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  26. INSTALL FRONT LOWER SUSPENSION MEMBER PROTECTOR
    1. Install the front lower suspension member protector with the 4 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  27. INSTALL FRONT NO. 2 UPPER SUSPENSION MEMBER
    1. Install the 2 front No. 2 upper suspension members with the 6 bolts.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  28. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  29. CONNECT POWER STEERING LINK WIRE HARNESS

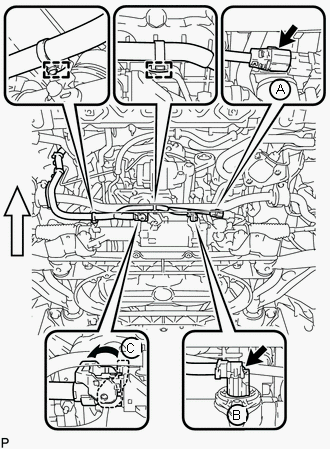

    1. Connect the wire harness connector (C) to the power steering link assembly and securely lock the connector.
      GTY524379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Front
    2. Connect the 2 wire harness connectors (A) and (B) to the power steering link assembly.
    3. Connect the 2 wire harness clamps to the bracket.
  30. CONNECT FRONT LOWER BALL JOINT ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  31. CONNECT FRONT LOWER BALL JOINT ASSEMBLY RH

    HINT:

    Install the RH side following the same procedure as for the LH side.

  32. CONNECT FRONT SHOCK ABSORBER ASSEMBLY LH
    1. Connect the lower part of the front shock absorber assembly LH to the front lower suspension arm assembly with the bolt and nut.

      Torque: 108 N*m (1101 kgf*cm, 80 ft.*lbf)

      NOTE:
      • Insert the bolt from the rear of the vehicle.
      • When tightening the bolt, keep the nut from rotating.
  33. CONNECT FRONT SHOCK ABSORBER ASSEMBLY RH

    HINT:

    Install the RH side following the same procedure as for the LH side.

  34. CONNECT STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  35. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 1

  36. FULLY TIGHTEN NO. 1 CENTER SUPPORT BEARING ASSEMBLY

    Refer to PROCEDURE - Step 2

  37. INSPECT AND ADJUST NO. 2 AND NO. 3 JOINT ANGLE

    Refer to PROCEDURE - Step 3

  38. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 5

  39. INSTALL NO. 1 FUEL TANK PROTECTOR

    Refer to PROCEDURE - Step 4

  40. INSTALL FRONT CENTER FLOOR BRACE SUB-ASSEMBLY
    1. Install the front center floor brace sub-assembly with the 4 bolts.

      Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

  41. INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  42. INSTALL FRONT EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 3

  43. CONNECT HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

    Refer to PROCEDURE - Step 6

  44. CONNECT HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

    Refer to PROCEDURE - Step 4

  45. INSTALL FRONT CENTER FLOOR BRACE

    Refer to PROCEDURE - Step 6

  46. INSTALL NO. 2 REAR FLOOR BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  47. INSTALL NO. 1 REAR FLOOR BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  48. CONNECT ENGINE WIRE
    1. Engine Room LH Side:
      1. Connect the No. 2 connector holder with the clamp and 3 claws.
      2. Connect the 3 connectors from the No. 2 connector holder.
      3. Install the No. 1 engine room relay block cover.
    2. Engine Room RH Side:
      1. Install the bolt, clamp and No. 3 engine wire.

        Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  49. CONNECT INVERTER RESERVOIR TANK ASSEMBLY

    Refer to PROCEDURE - Step 14

  50. CONNECT MOTOR CABLE

    Refer to PROCEDURE - Step 10

  51. CONNECT GENERATOR CABLE

    Refer to PROCEDURE - Step 11

  52. INSTALL ECM

    Refer to PROCEDURE - Step 5

  53. CONNECT SUCTION HOSE

    Refer to PROCEDURE - Step 4

  54. CONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

    Refer to PROCEDURE - Step 3

  55. INSTALL NO. 1 INVERTER COOLING PIPE
    1. Install the No. 1 inverter cooling pipe with the bolt.

      Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

    2. Connect the 2 hoses.
    3. Connect the 2 connectors and 2 wire harness clamps.
  56. CONNECT NO. 5 INVERTER COOLING HOSE
    1. Connect the No. 5 inverter cooling hose.
  57. CONNECT NO. 2 OIL COOLER OUTLET HOSE

    Refer to PROCEDURE - Step 6

  58. CONNECT NO. 2 OIL COOLER INLET HOSE

    Refer to PROCEDURE - Step 7

  59. CONNECT AIR CONDITIONING HARNESS

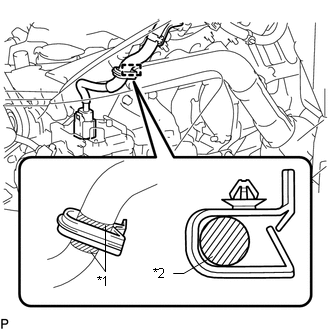

    1. Connect the white tape part of the air conditioning harness to the clamp as shown in the illustration.
      GTY417760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 White Tape
      *2 Air Conditioning Harness
      NOTE:

      Make sure that the air conditioning harness is securely connected.

    2. Connect the 2 wire harness clamps to each bracket.
    3. Connect the bracket with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

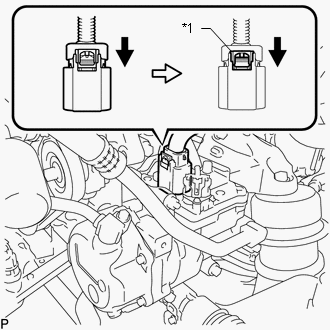

    4. Connect the connector and lock the green-colored lock as shown in the illustration.
      GTY395682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Green-colored Lock
      WARNING:

      Wear insulated gloves when performing the procedure.

  60. CONNECT OUTLET HEATER WATER HOSE
    1. Connect the outlet heater water hose.
    2. Install the water hose set.
  61. CONNECT INLET HEATER WATER HOSE
    1. Connect the inlet heater water hose.
    2. Install the water hose set.
  62. CONNECT NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 3

  63. INSTALL NO. 1 RADIATOR HOSE

    Refer to PROCEDURE - Step 10

  64. CONNECT FUEL TUBE SUB-ASSEMBLY
    1. Connect the fuel tube sub-assembly (Refer to PRECAUTION [09/2014 - ] ).
  65. CONNECT NO. 2 FUEL TUBE SUB-ASSEMBLY
    1. Connect the No. 2 fuel tube sub-assembly (Refer to PRECAUTION [09/2014 - ] ).
  66. CONNECT NO. 3 FUEL TUBE SUB-ASSEMBLY
    1. Connect the No. 3 fuel tube sub-assembly (Refer to PRECAUTION [09/2014 - ] ).
  67. CONNECT PURGE LINE HOSE
    1. Install the clamp and connect the purge line hose.
  68. INSTALL HEATER ACCESSORY ASSEMBLY

    Refer to PROCEDURE - Step 1

  69. CONNECT WIRING HARNESS PROTECTOR

    Refer to PROCEDURE - Step 4

  70. INSTALL OIL PUMP MOTOR CONTROLLER

    Refer to PROCEDURE - Step 1

  71. CONNECT WIRE HARNESS

    Refer to PROCEDURE - Step 2

  72. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

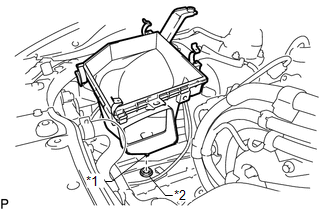

    1. Insert the pin on the lower side of the air cleaner case into the grommet.
      GTY528158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Pin
      *2 Grommet
    2. Install the air cleaner case, 2 clamps and 2 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      NOTE:

      During removal, do not lose the grommet on the underside of the air cleaner case.

  73. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
  74. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2

  75. INSTALL NO. 1 AIR CLEANER INLET
    1. Install the No. 1 air cleaner inlet with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  76. ADD ENGINE OIL

    Refer to PROCEDURE - Step 5

  77. INSTALL CONNECTOR COVER ASSEMBLY

    Refer to PROCEDURE - Step 9

  78. INSTALL INVERTER TERMINAL COVER

    Refer to PROCEDURE - Step 12

  79. INSTALL INVERTER MOTOR CABLE BRACKET ASSEMBLY

    Refer to PROCEDURE - Step 13

  80. INSTALL INVERTER COVER

    Refer to PROCEDURE - Step 20

  81. INSTALL SERVICE PLUG GRIP

    Refer to PROCEDURE - Step 1

  82. INSTALL LOWER HYBRID VEHICLE BATTERY COVER PANEL

    Refer to PROCEDURE - Step 2

  83. INSTALL NO. 1 SEAT ARMREST CAP

    Refer to PROCEDURE - Step 18

  84. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2014 - 10/2015] ).

  85. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 24

  86. INSTALL LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 26

  87. PERFORM INITIALIZATION

    (Refer to INITIALIZATION [09/2014 - 10/2015] )

  88. ADJUST SHIFT LEVER POSITION

    Refer to PROCEDURE - Step 2

  89. INSPECT SHIFT LEVER POSITION

    Refer to PROCEDURE - Step 1

  90. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 5

  91. ADD COOLANT (for Inverter)

    Refer to PROCEDURE - Step 5

  92. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to PROCEDURE - Step 2

  93. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  94. INSPECT COOLANT LEAK (for Inverter)

    Refer to PROCEDURE - Step 1

  95. INSPECT FOR OIL LEAK

    Refer to PROCEDURE - Step 6

  96. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1

  97. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 9

  98. CHECK FOR REFRIGERANT GAS LEAK

    Refer to PROCEDURE - Step 4

  99. INSTALL FRONT WHEEL

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

  100. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  101. CHECK AND ADJUST FRONT WHEEL ALIGNMENT

    (Refer to ADJUSTMENT [09/2014 - 10/2015] )

  102. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to PROCEDURE - Step 1

  103. ADJUST NIGHT VIEW CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 8

  104. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY

    Refer to PROCEDURE - Step 6

  105. INSPECT IGNITION TIMING

    See step  8

  106. INSPECT ENGINE IDLE SPEED

    See step  9

  107. INSPECT CO/HC

    See step  11

  108. INSPECT ENGINE COOLANT LEVEL

    Refer to PROCEDURE - Step 2

  109. INSPECT COOLANT LEVEL IN RESERVOIR TANK (for Inverter)

    Refer to PROCEDURE - Step 2

  110. INSPECT ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 2

  111. INSTALL NO. 2 ENGINE UNDER COVER
    1. Install the No. 2 engine under cover with the 4 screws and 2 grommets.
  112. INSTALL FRONT SUSPENSION MEMBER BRACE
    1. Install the front suspension member brace with the clip and 4 bolts.

      Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

  113. INSTALL REAR ENGINE UNDER COVER LH
    1. Install the rear engine under cover LH with the screw.
  114. INSTALL REAR ENGINE UNDER COVER RH

    HINT:

    Install the RH side following the same procedure as for the LH side.

  115. INSTALL ENGINE UNDER COVER
    1. Install the engine under cover with the 13 screws and 3 clips.
  116. INSTALL V-BANK COVER SUB-ASSEMBLY

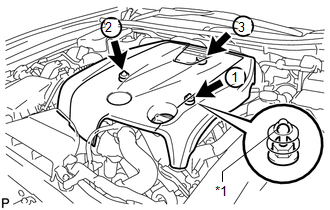

    1. Attach the 3 clips in the order shown in the illustration to install the V-bank cover.
      GTY526491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Tip (Round Portion)
      NOTE:
      • Securely attach the clips.
      • If the clips are forcibly attached or struck with an object, they may be damaged.
      • Do not apply any oil to the tips (round portions).
  117. INSTALL COOL AIR INTAKE DUCT SEAL
    1. Install the cool air intake duct seal with the 7 clips.
  118. INSTALL ENGINE ROOM SIDE COVER
    1. Install the engine room side cover with the 4 clips.
scientia non olet · About LEMON Manuals
