System Diagram [09/2014 - ]

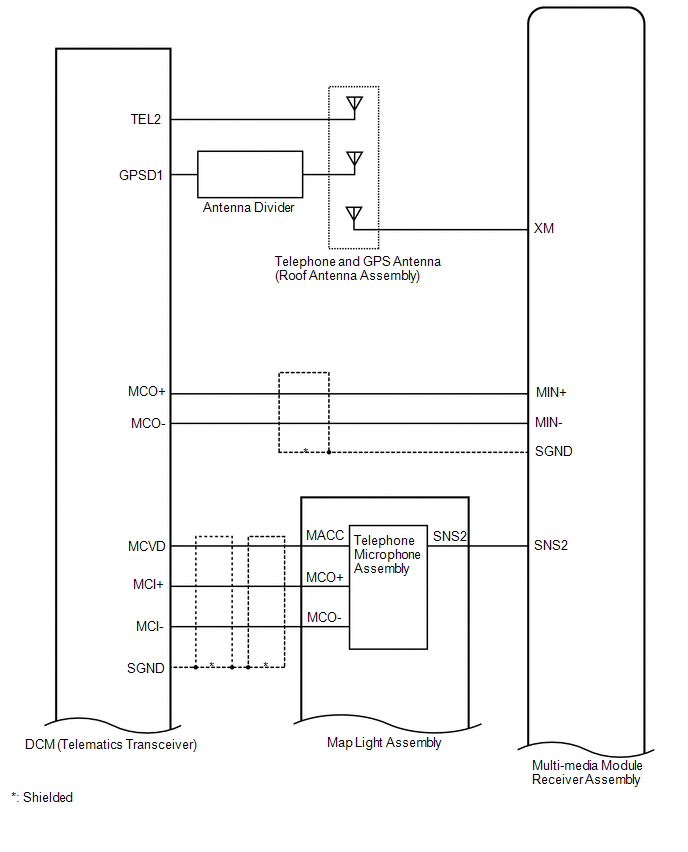

Fig 1: Lexus Enform System Wiring Diagram (1 Of 3)
GTY521579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

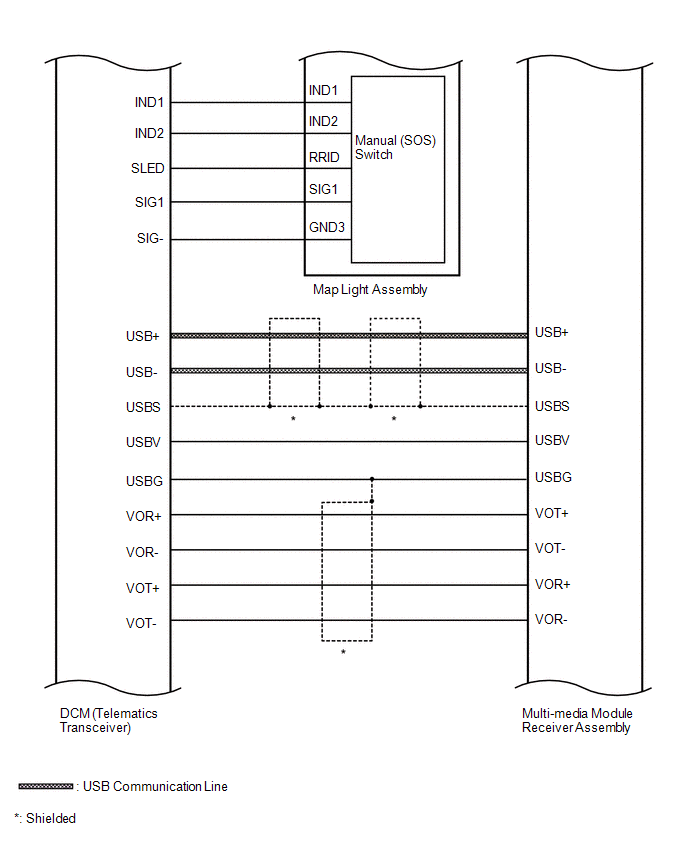

Fig 2: Lexus Enform System Wiring Diagram (2 Of 3)
GTY514825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

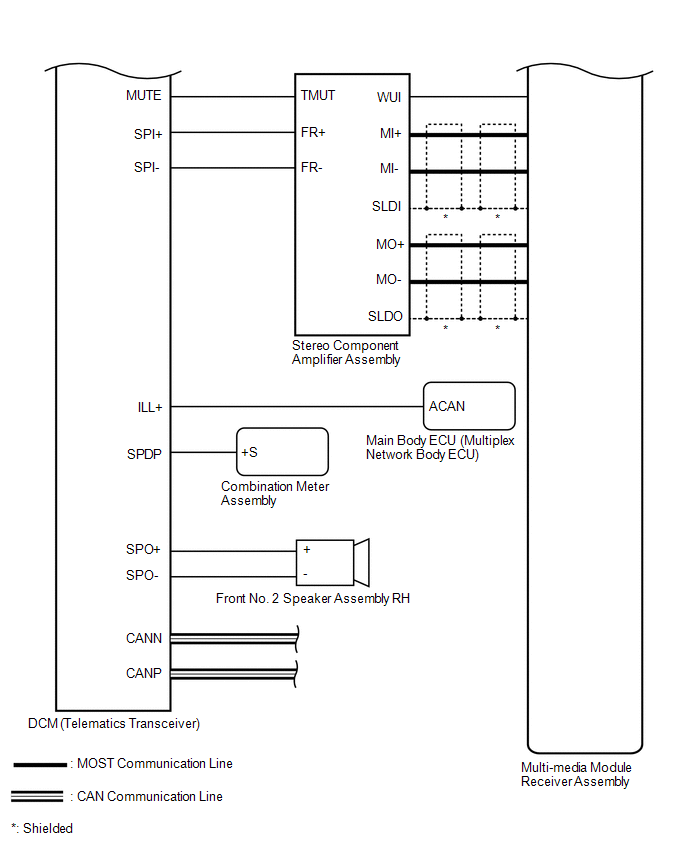

Fig 3: Lexus Enform System Wiring Diagram (3 Of 3)
GTY497381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
