Removal [10/2015 - ]: Procedure

  1. REMOVE CRANKSHAFT POSITION SENSOR

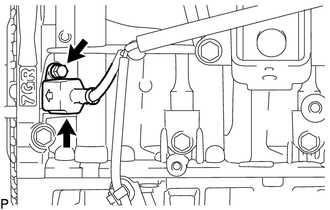

    1. Disconnect the connector from the crankshaft position sensor.
      GTY664541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor.
