Removal [10/2015 - ]: Procedure

  1. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE AIR CLEANER CAP AND HOSE

    See step  5

  5. DISCONNECT ENGINE WIRE

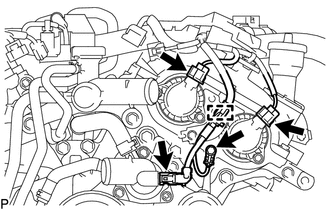

    1. Disconnect the 3 connectors and detach the wire harness clamp.
      GTY642233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and disconnect the engine wire from the cylinder head LH.

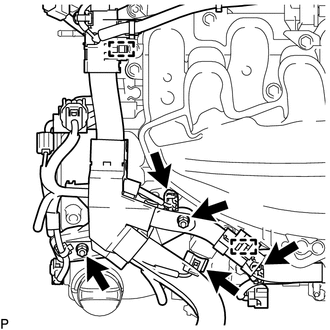

    3. Disconnect the 3 connectors and detach the 2 wire harness clamps.
      GTY642234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 nuts and disconnect the engine wire from the cylinder head cover sub-assembly LH.
  6. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the connector from the VVT sensor.
      GTY682649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
  7. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the connector from the VVT sensor.
      GTY658585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.

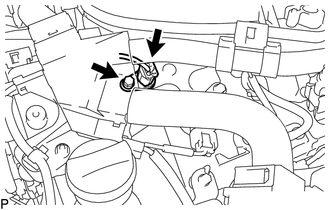

  8. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the connector from the VVT sensor.
      GTY682652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.

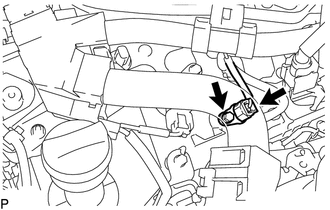

  9. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the connector from the VVT sensor.
      GTY658584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
