Components [10/2015 - ]: Illustration

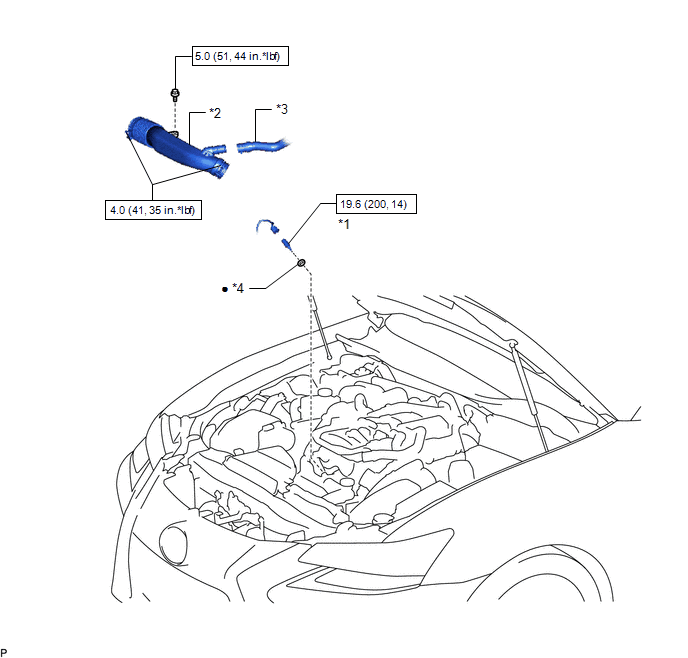

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY613379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 NO. 1 AIR CLEANER HOSE
*3 PCV HOSE *4 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
