Removal [10/2015 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    See step  1

  2. DISCONNECT NO. 3 PCV HOSE

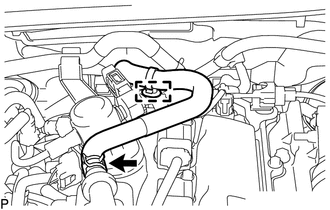

    1. Slide the hose clamp and disconnect the No. 3 PCV hose from the cylinder head cover sub-assembly.
      GTY664132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp to disconnect the No. 3 PCV hose from the engine wire.
  3. REMOVE CAMSHAFT POSITION SENSOR

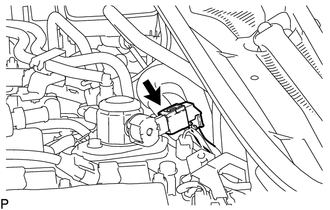

    1. Disconnect the connector from the fuel pump assembly.
      GTY664131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

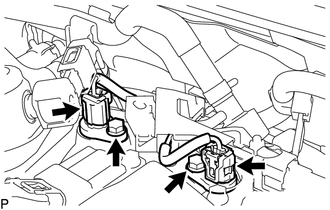

    2. Disconnect the 2 connectors from each camshaft position sensor.
      GTY683889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and 2 camshaft position sensors.
      NOTE:

      Replace with a new part if it is dropped or if it receives a strong impact.
