Installation [10/2015 - ]: Procedure

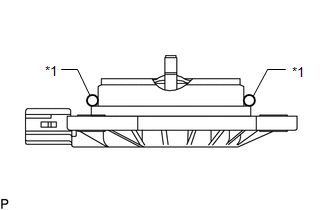

1. Apply engine oil to a new O-ring and install it to the camshaft timing oil control solenoid assembly in the locations shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   O-Ring

2. Install the camshaft timing oil control solenoid assembly with 2 new bolts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   NOTE:

   Be careful that the O-ring is not jammed.

3. Connect the camshaft timing oil control solenoid assembly connector.

See step  2
