Removal [10/2015 - ]: Procedure

  1. REMOVE OIL PRESSURE SENDER GAUGE ASSEMBLY

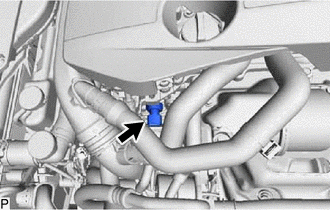

    1. Disconnect the oil pressure sender gauge assembly connector.
      GTY633109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 27 mm deep socket wrench, remove the oil pressure sender gauge assembly.
