Removal [10/2015 - ]: Procedure

  1. DRAIN ENGINE OIL

    See step  1

  2. REMOVE FRONT SUSPENSION MEMBER BRACE

    Refer to PROCEDURE - Step 10 [10/2015 - 09/2016] or refer to PROCEDURE - Step 10 [09/2016 - ]

  3. REMOVE ENGINE OIL TEMPERATURE SENSOR

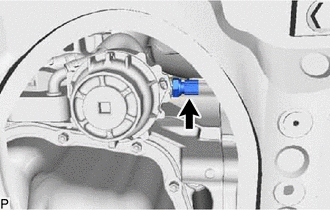

    1. Disconnect the engine oil temperature sensor connector.
      GTY633092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 19 mm ball joint lock nut wrench, remove the engine oil temperature sensor from the stiffening crankcase assembly.
    3. Remove the gasket from the engine oil temperature sensor.
