Inspection [09/2014 - ]: Procedure
- INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

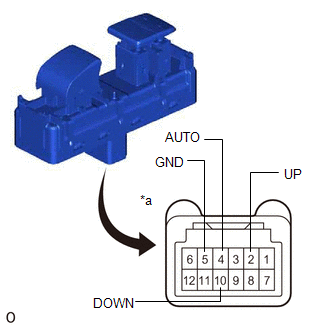

- Measure the resistance according to the value (s) in the table below.
Standard resistance
Tester Connection Switch Condition Specified Condition 2 (UP) - 5 (GND) Manual UP operation Below 1 Ω 10 (DOWN) - 5 (GND) Manual DOWN operation Below 1 Ω 2 (UP) - 5 (GND)
4 (AUTO) - 5 (GND)AUTO UP operation Below 1 Ω 10 (DOWN) - 5 (GND)
4 (AUTO) - 5 (GND)AUTO DOWN operation Below 1 Ω If the result is not as specified, replace the power window regulator switch assembly.
TEXT IN ILLUSTRATION*a Component without harness connected

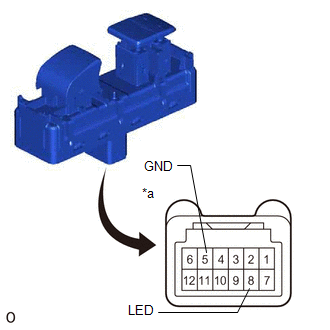

(Power Window Regulator Switch Assembly) Apply battery voltage to the power window regulator switch and check that the LED illuminates.
OK
Measurement Condition Specified Condition Battery positive (+) → 8 (LED)
Battery negative (-) → 5 (GND)LED illuminates If the result is not as specified, replace the power window regulator switch assembly.
TEXT IN ILLUSTRATION*a Component without harness connected
(Power Window Regulator Switch Assembly)
- Measure the resistance according to the value (s) in the table below.
