Components [07/2015 - ]: Illustration

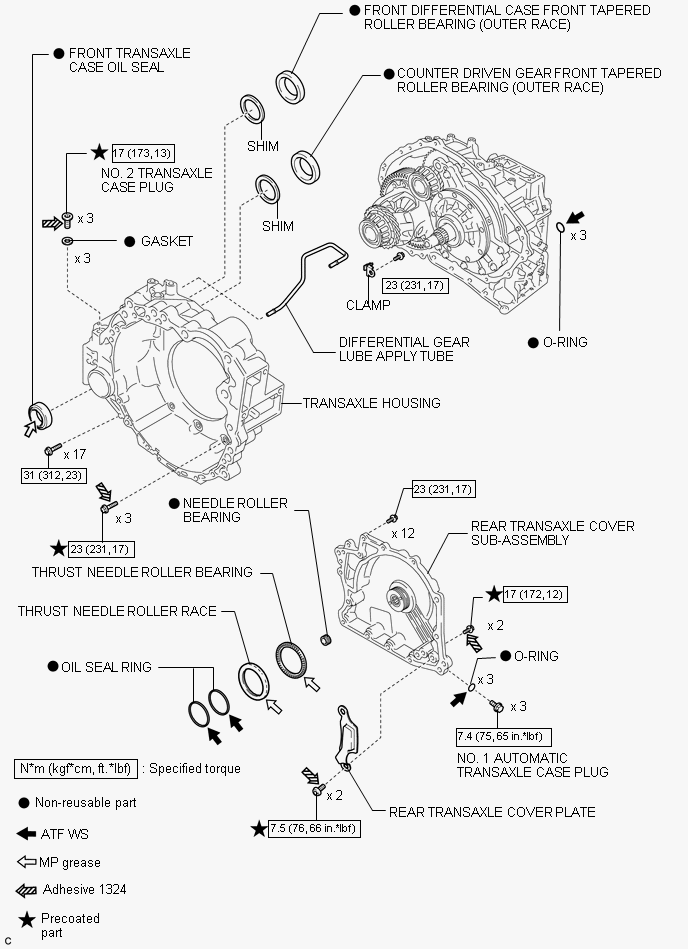

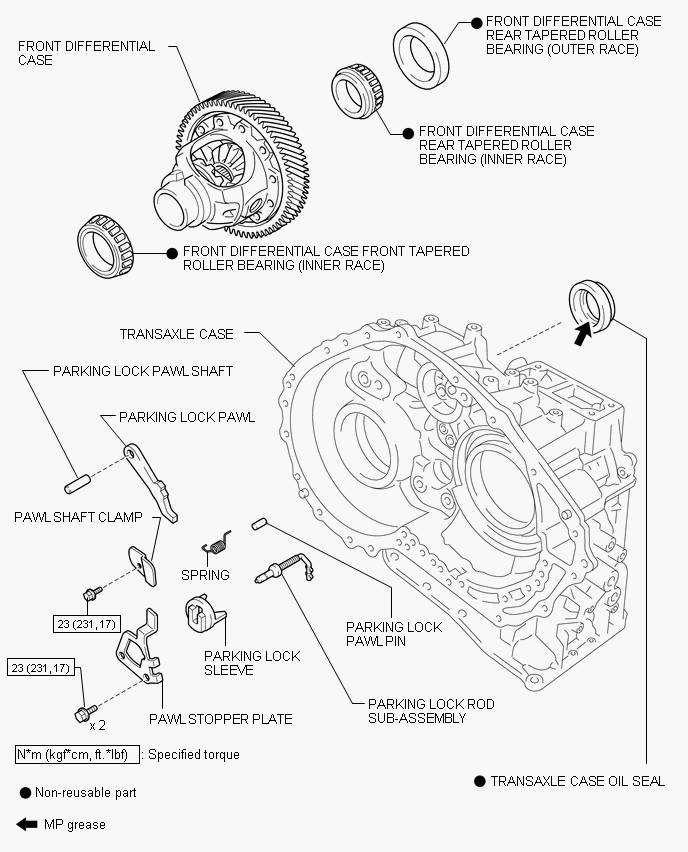

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications (1 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

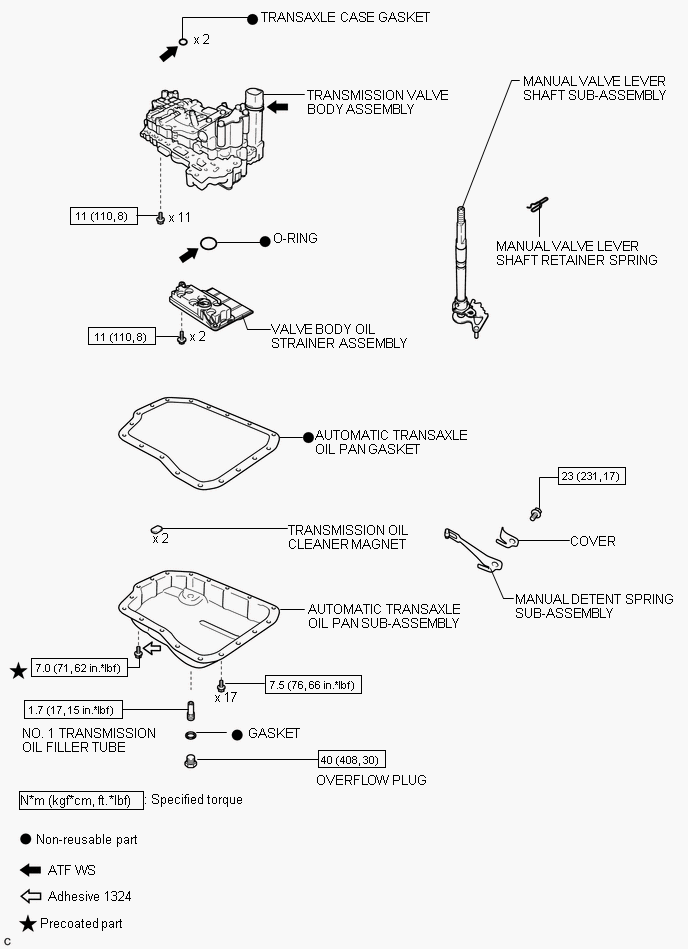

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications (2 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

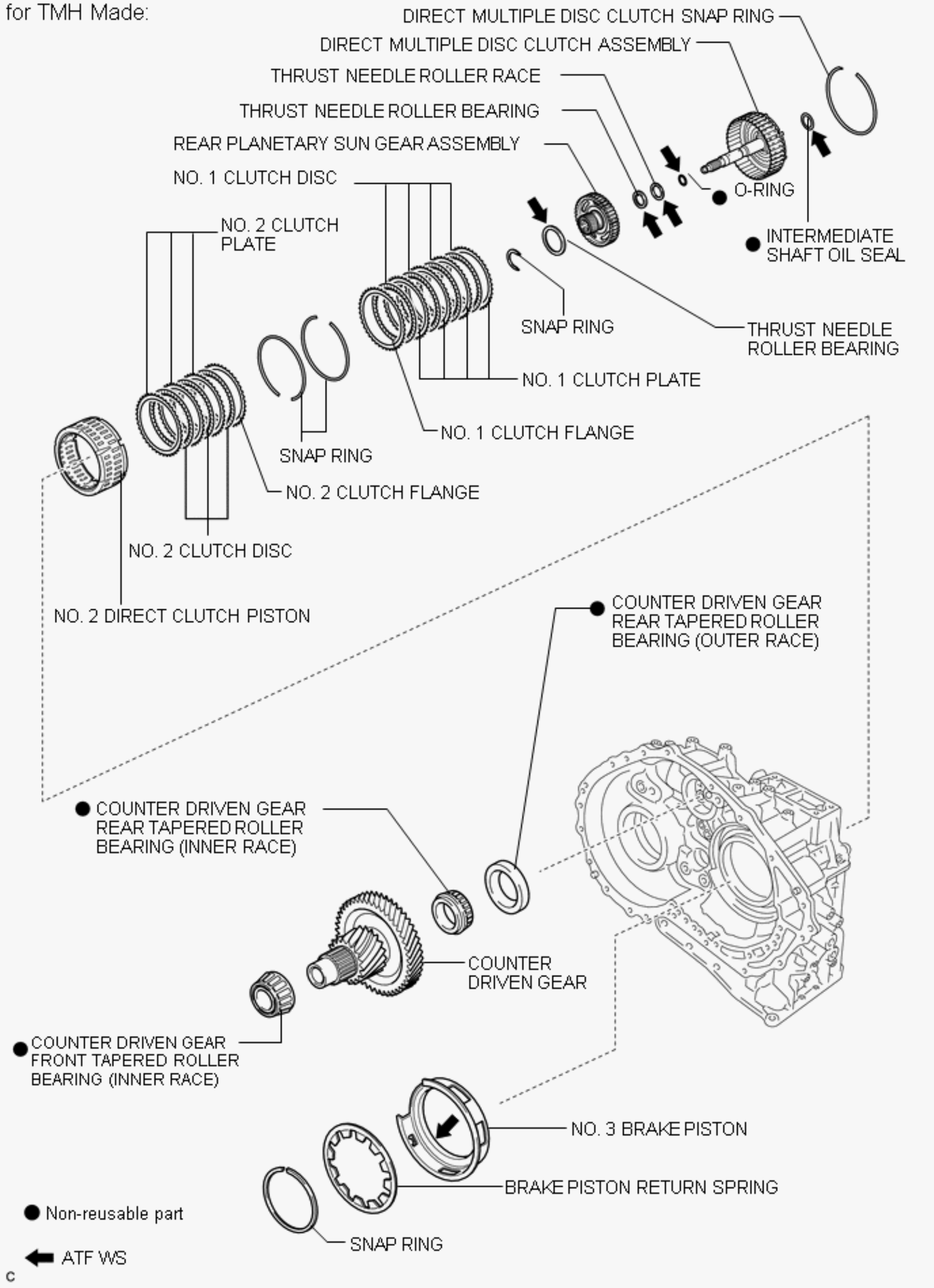

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications (3 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

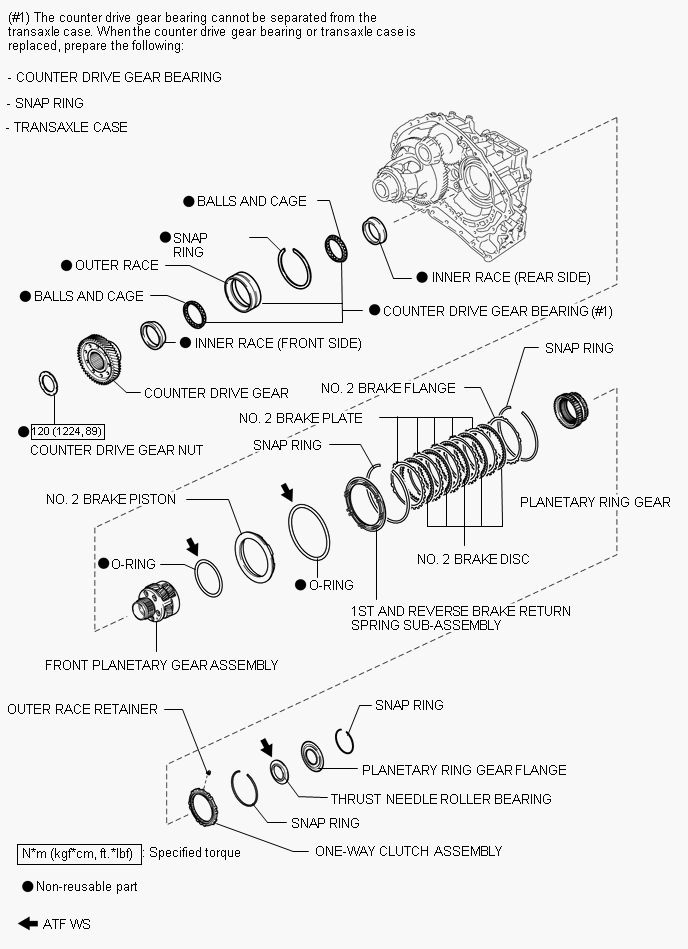

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications (4 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

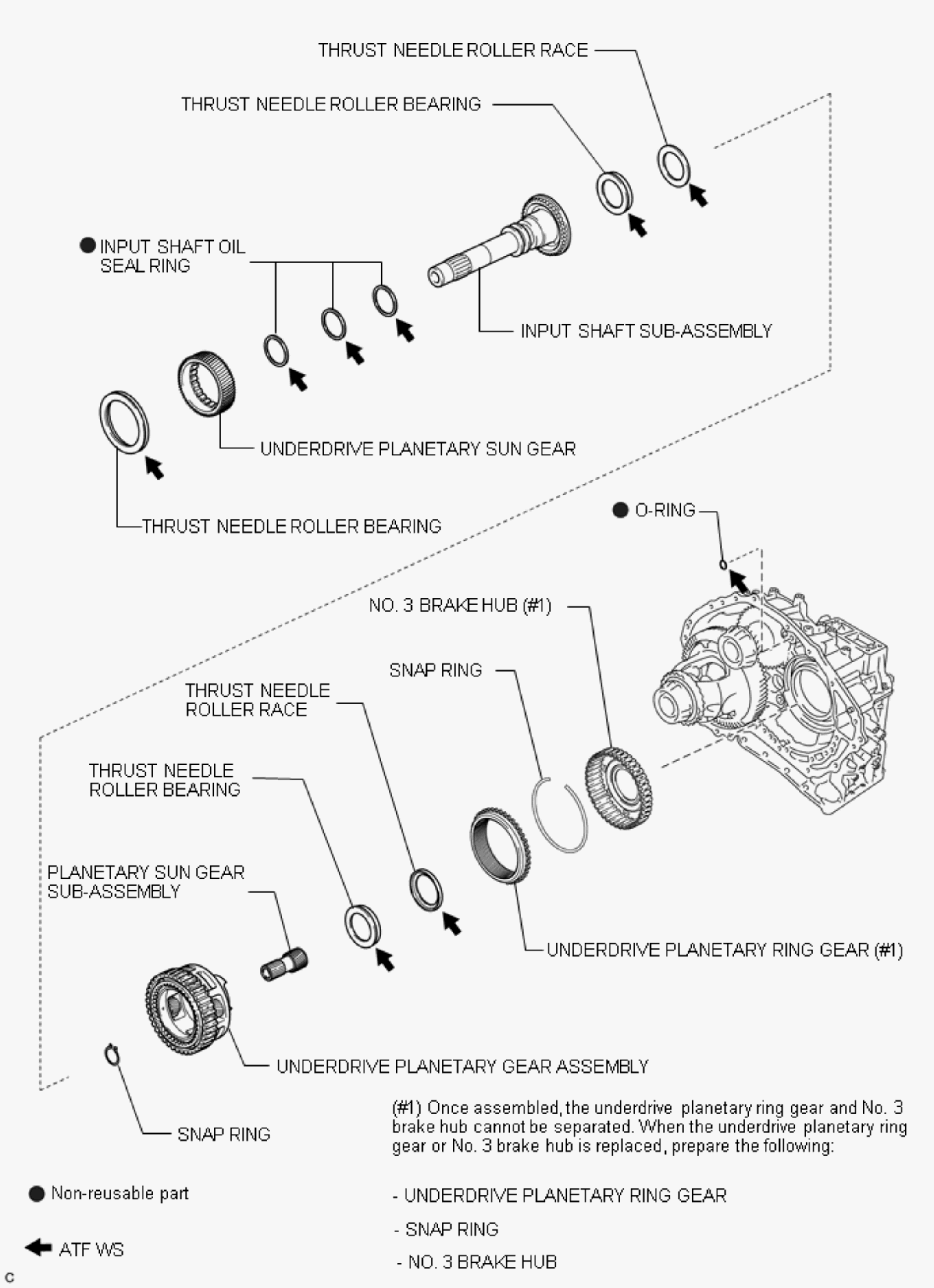

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications (5 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

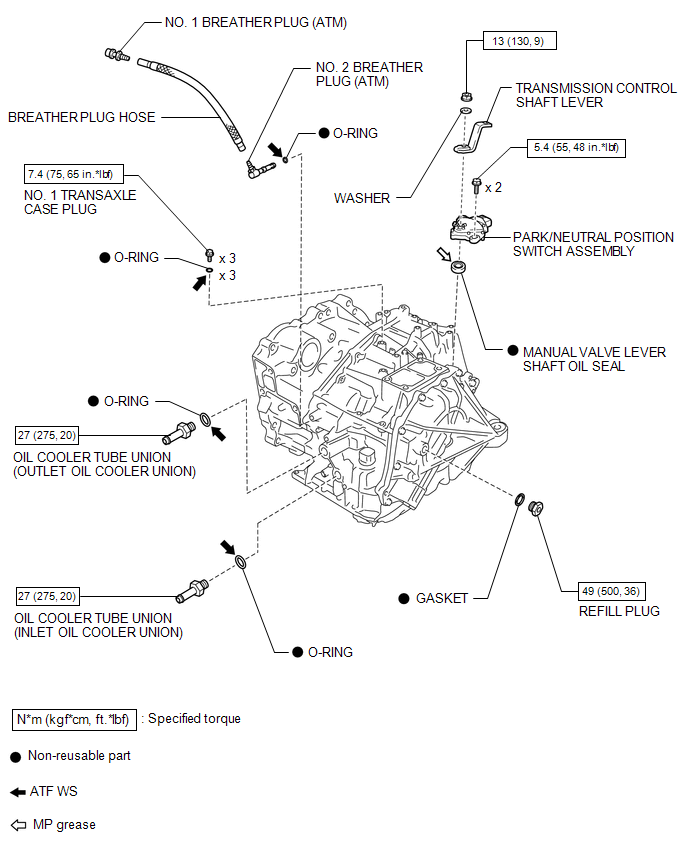

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications (6 of 9)

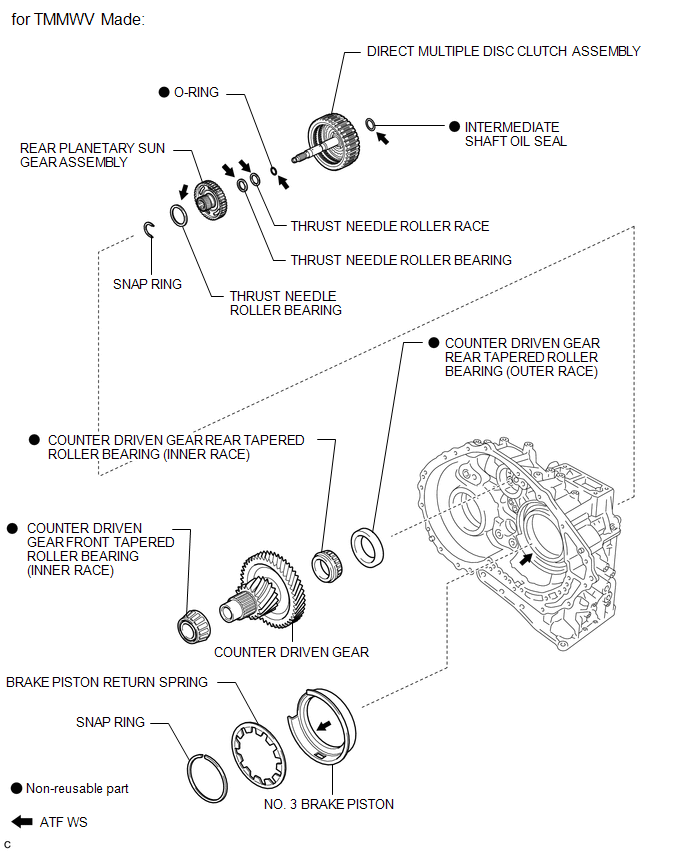

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications (7 of 9)

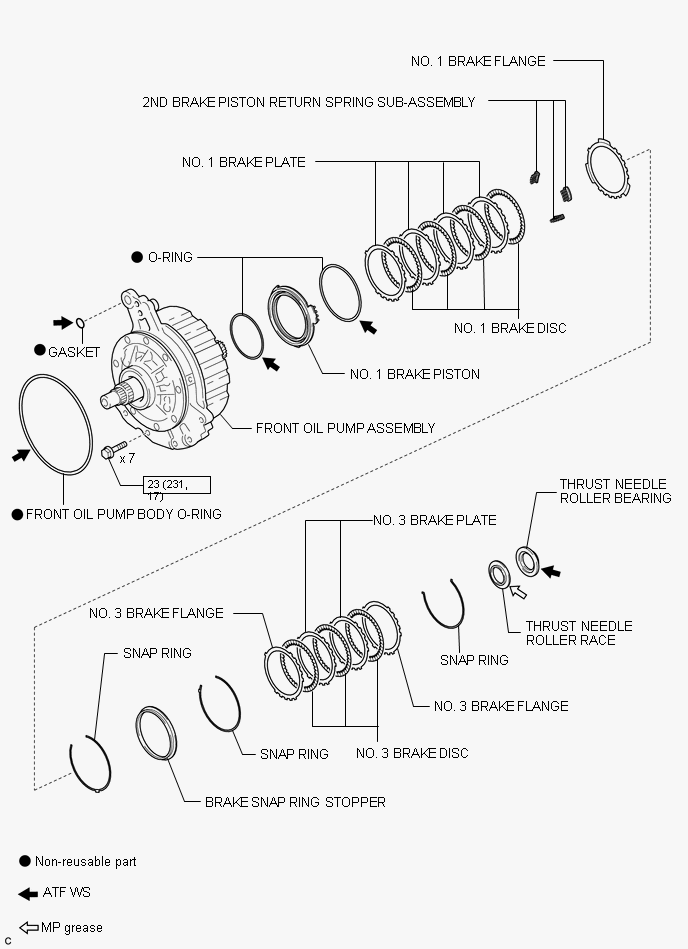

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications (8 of 9)

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications (9 of 9)
