Components [07/2015 - ]: Illustration

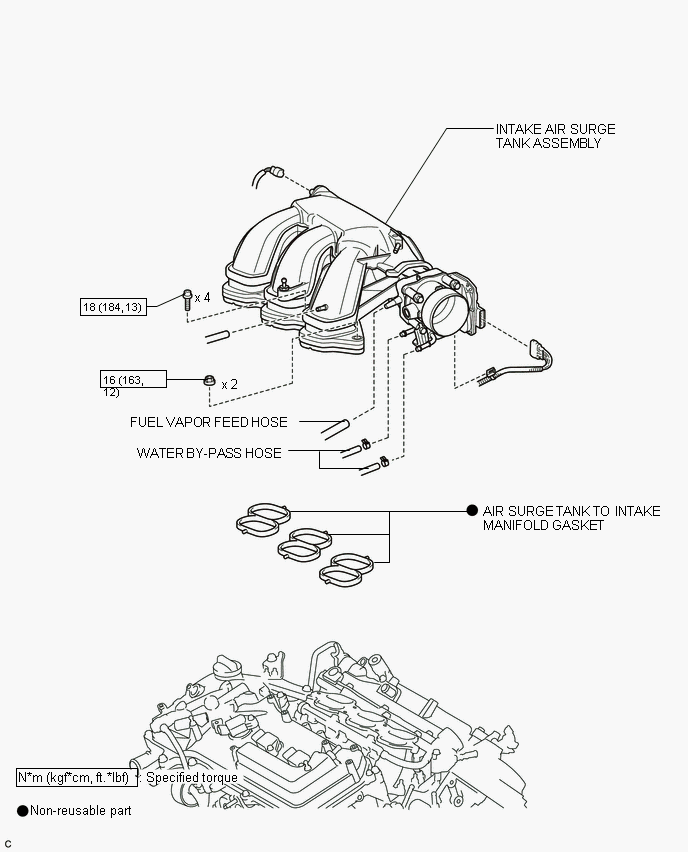

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY624718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

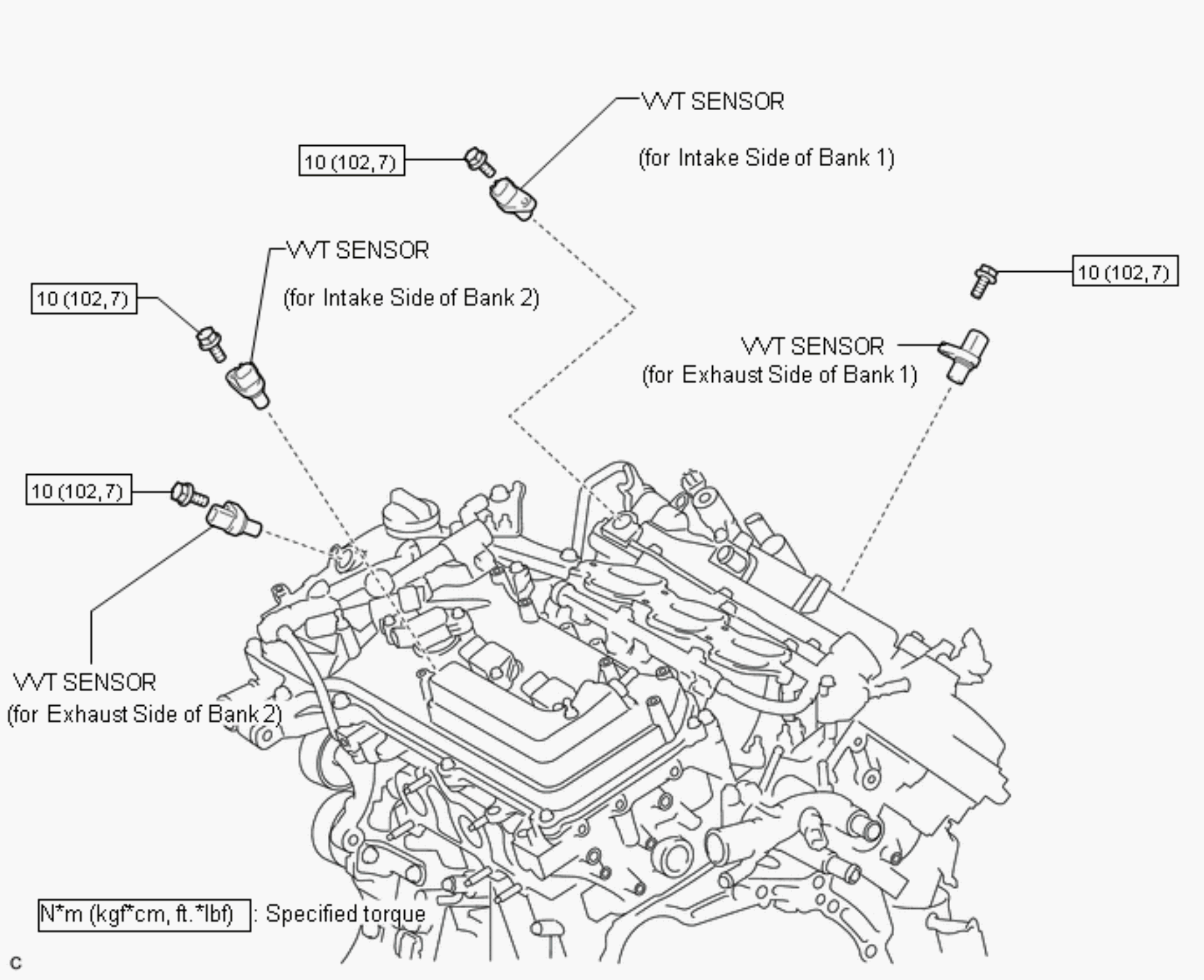

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY645561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
