System Diagram [07/2015 - ]

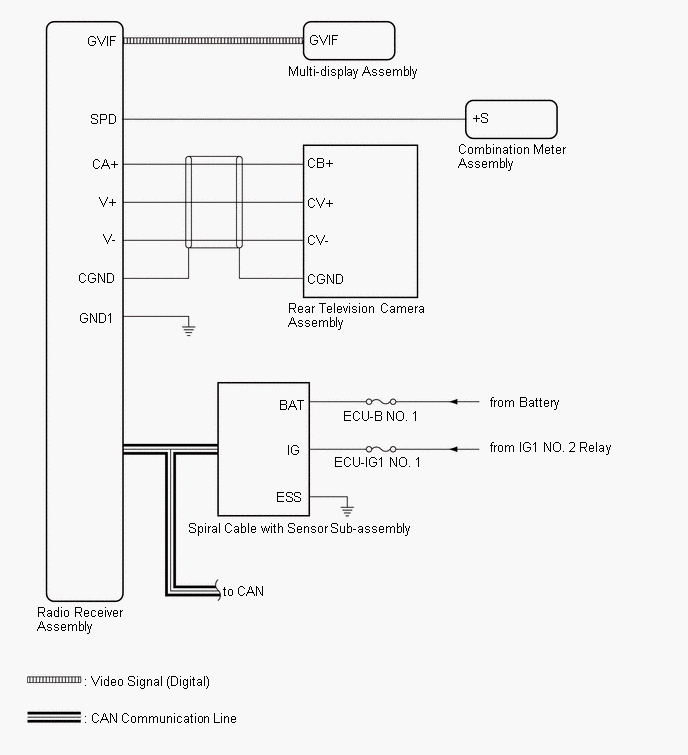

Fig 1: Parking Assist Monitor System (W/ Parallel Parking Assist Function) Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Parking Assist Monitor System (W/ Parallel Parking Assist Function) Circuit Diagram (2 Of 2)

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
Radio Receiver Assembly	Multi-display Assembly	Video signal	Digital
Spiral Cable with Sensor Sub-assembly	Radio Receiver Assembly	Steering angle signal	CAN
ECM	Radio Receiver Assembly	Shift position signal	CAN
Main Body ECU (Multiplex Network Body ECU)	Radio Receiver Assembly	Luggage courtesy switch signal	CAN
