Main Body ECU Communication Stop Mode (07/2015 -): Wiring Diagram

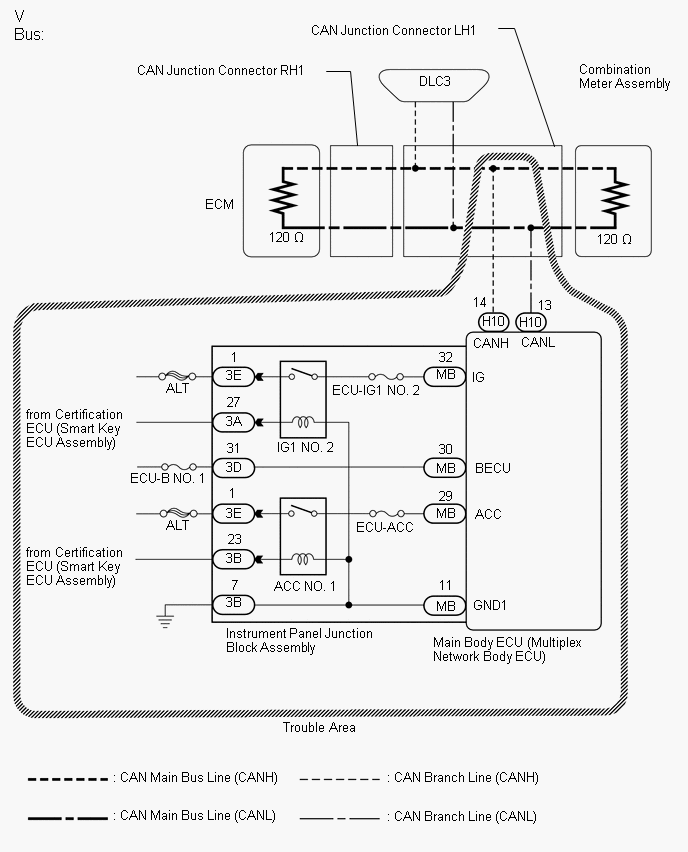

Fig 1: Multiplex Network Body ECU Wiring Diagram

GTY678603

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
