DTC U0230: Lost Communication with Rear Gate Module (07/2015 -): Procedure

1. Reconfirm DTCs.

   HINT:

   If DTC U1002 is output from Main Body of the main body ECU (multiplex network body ECU), this indicates a sub bus 1 malfunction. Troubleshoot for DTC U1002 and check for malfunctions in sub bus 1.

   Result

   Result	Proceed to
   U1002 is not output from main body ECU (multiplex network body ECU) (Techstream display: Main Body)	A
   U1002 is output from main body ECU (multiplex network body ECU) (Techstream display: Main Body)	B

Result:  B

B

GO TO DIAGNOSIS PROCEDURE INDICATED BY OUTPUT DTC

(Refer to DTC U1002: Lost Communication with Gateway Module (Main Body ECU) (07/2015 -) )

Result:  A

A

See step  2

1. Disconnect the cable from the negative (-) battery terminal.

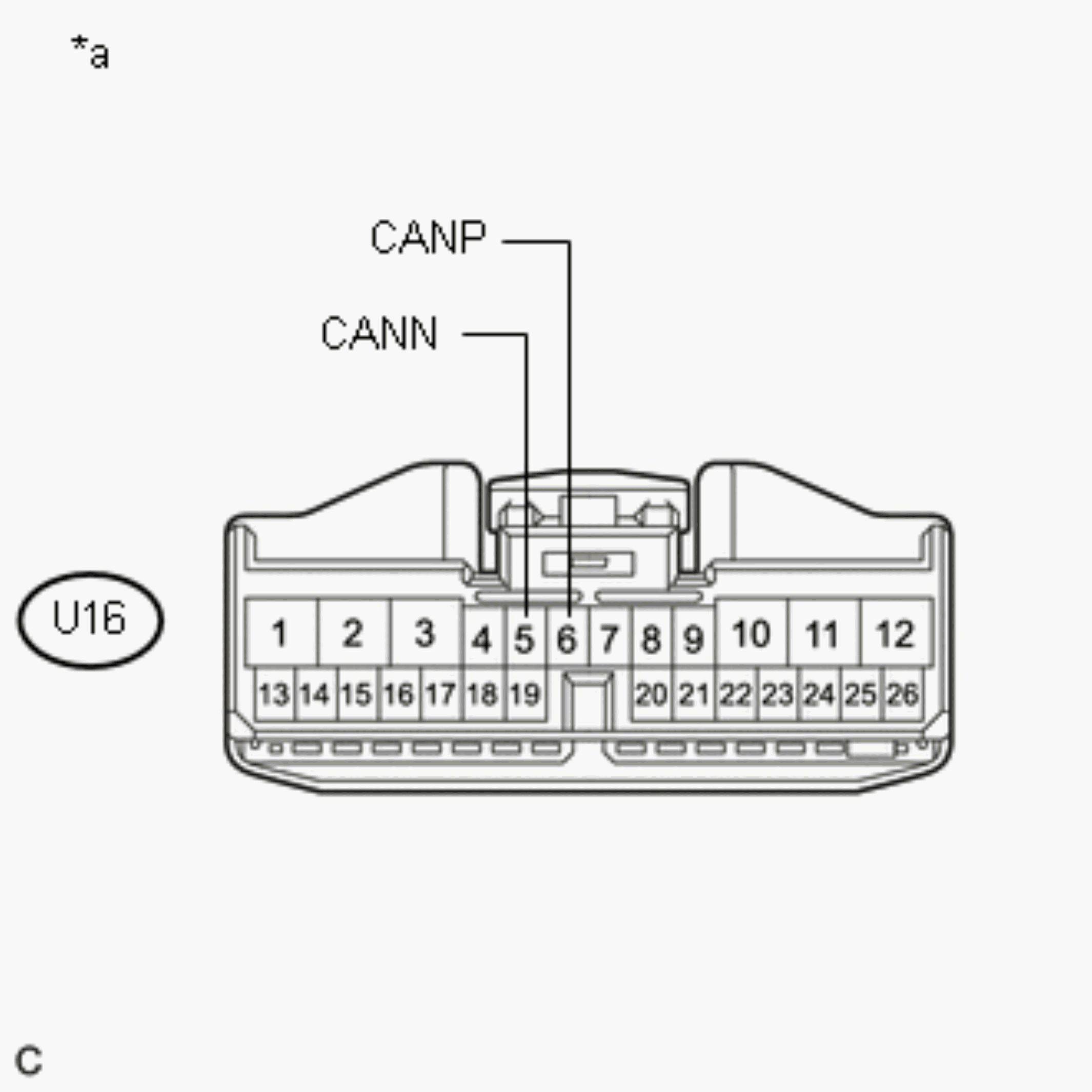

2. Disconnect the U16 luggage closer motor assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   U16-6 (CANP) - U16-5 (CANN)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Luggage Closer Motor Assembly)

Result:  NG

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (LUGGAGE CLOSER MOTOR ASSEMBLY)

Result:  OK

OK

See step  3

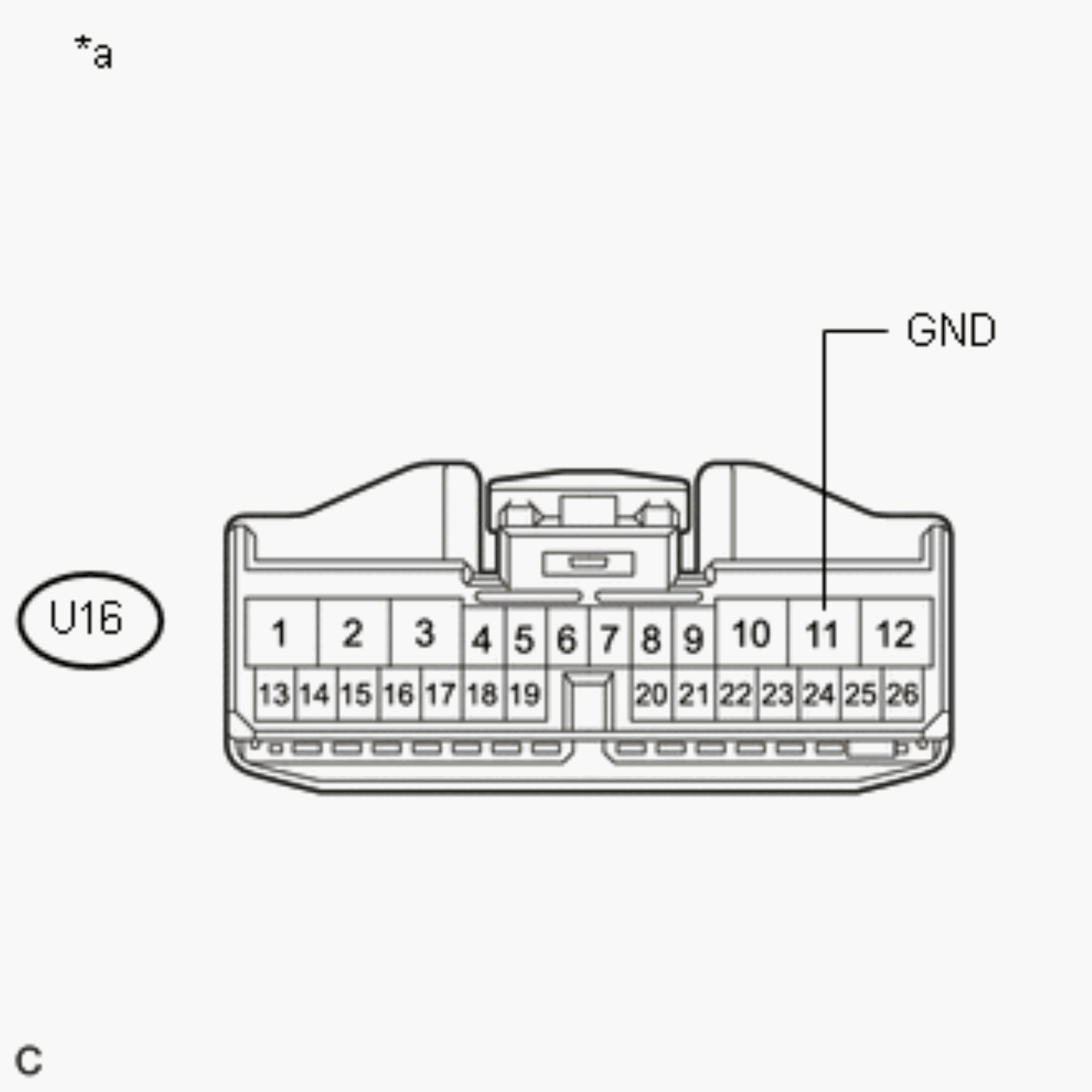

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   U16-11 (GND) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Luggage Closer Motor Assembly)

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (GROUND CIRCUIT)

Result:  OK

OK

See step  4

1. Reconnect the cable to the negative (-) battery terminal.

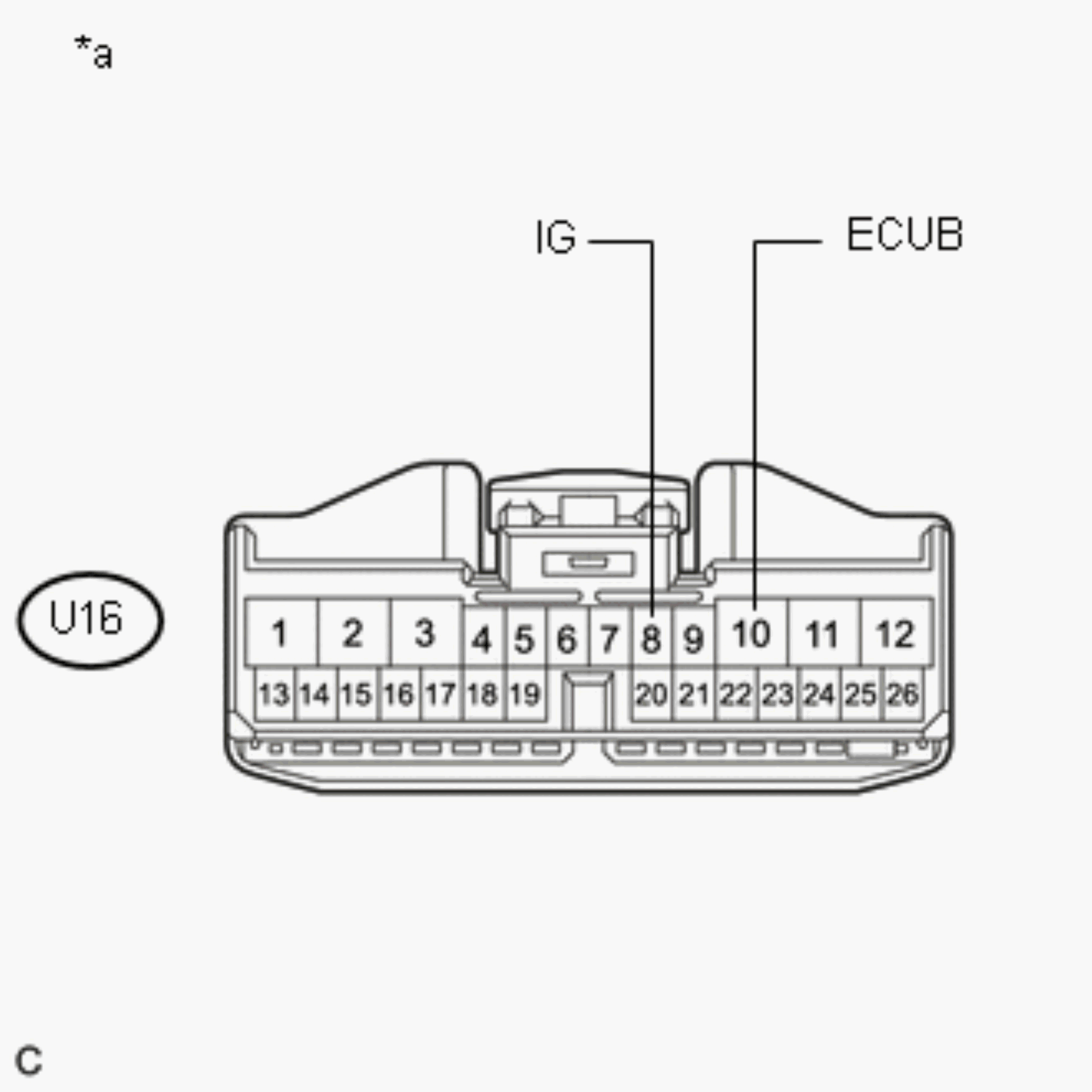

2. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   U16-10 (ECUB) - Body ground	Always	11 to 14 V
   U16-8 (IG) - Body ground	Engine switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Luggage Closer Motor Assembly)

Result:  OK

OK

REPLACE LUGGAGE CLOSER MOTOR ASSEMBLY

(Refer to REMOVAL (07/2015 -) )

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
