DTC U0199: Lost Communication with "Door Control Module A" (07/2015 -): Wiring Diagram

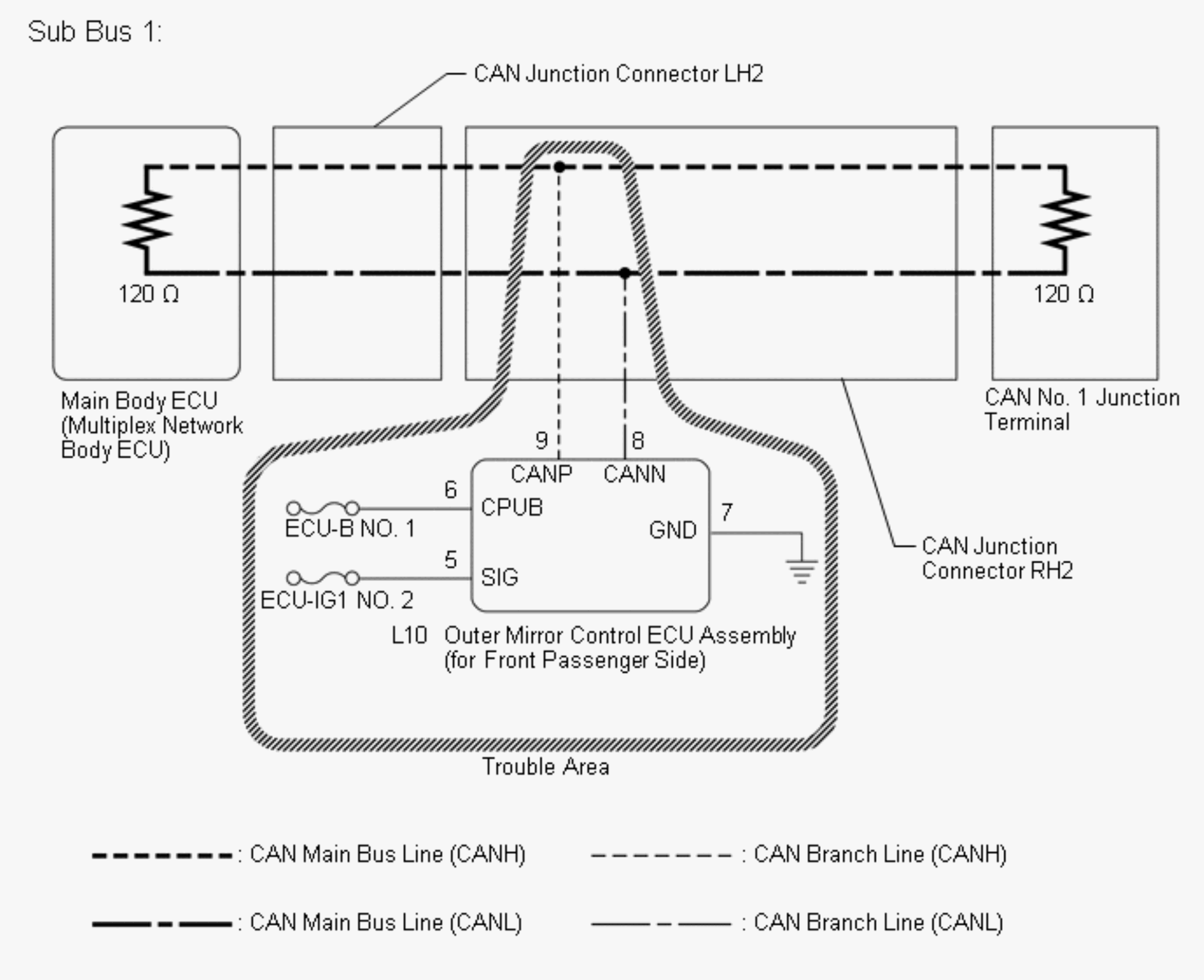

Fig 1: Outer Mirror Control ECU Assembly Wiring Diagram

GTY618612

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
