DTC U0199: Lost Communication with "Door Control Module A" (07/2015 -): Wiring Diagram

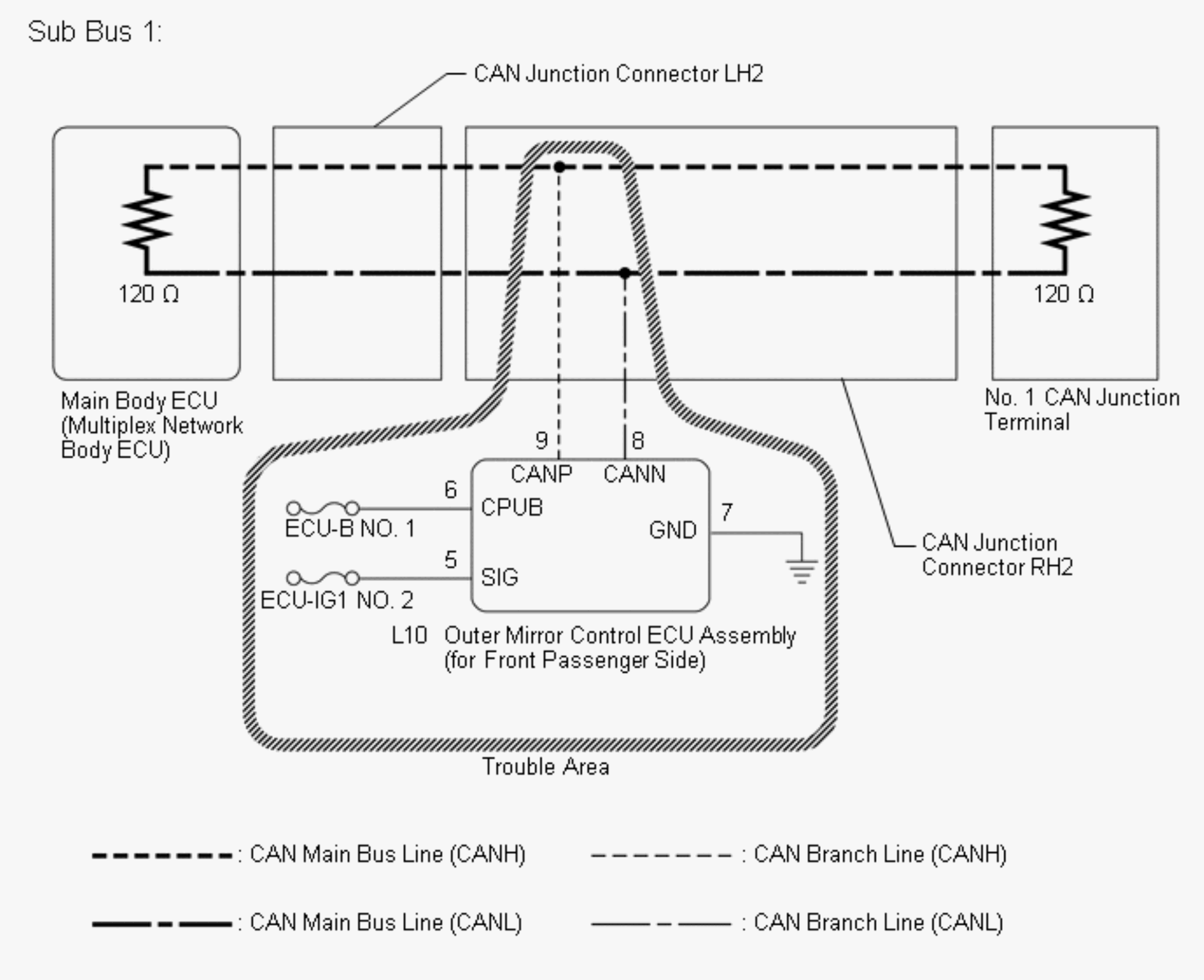

Fig 1: Outer Mirror Control ECU Assembly (For Front Passenger Side) Wiring Diagram
GTY673832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
