DTC U0199: Lost Communication with "Door Control Module A" (2016 - 2017): Wiring Diagram

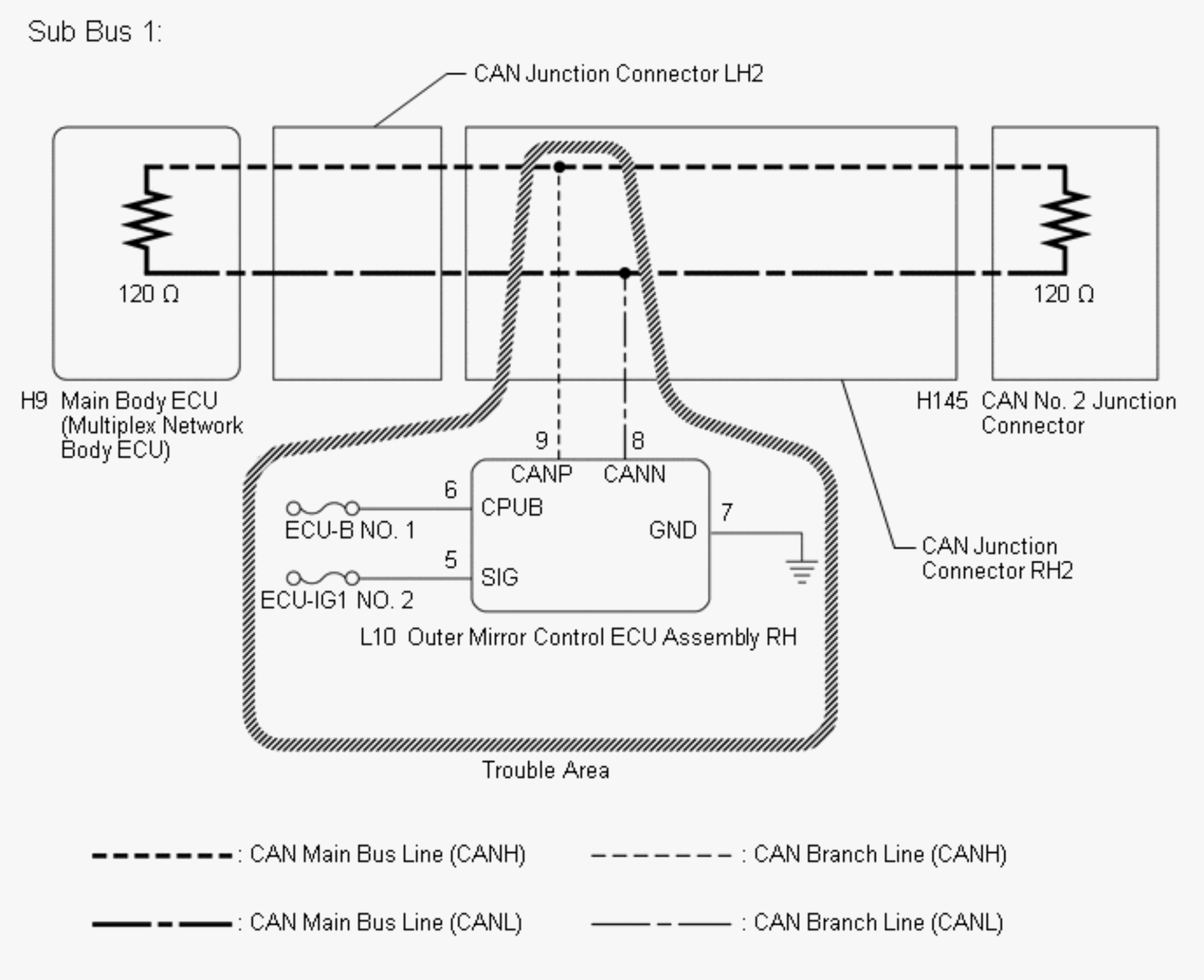

Fig 1: Outer Mirror Conrtol Wiring Diagram

GTY618594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
