DTC U0100: Lost Communication with ECM / PCM "A"; DTC U0129: Lost Communication with Brake System Control Module; DTC U0293: Lost Communication with HV ECU (2016 - 2017): Wiring Diagram

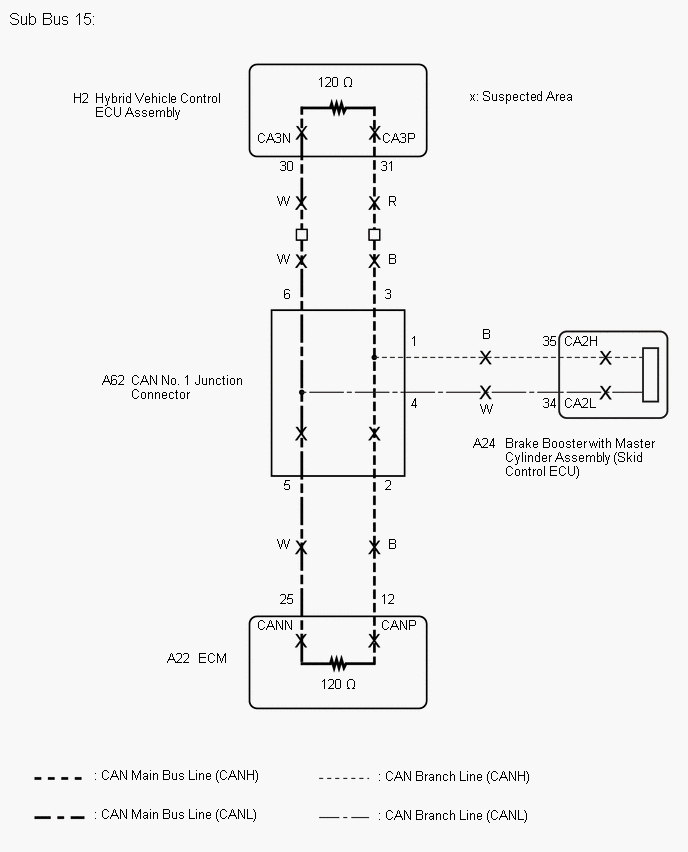

Fig 1: Skid Control ECU Wiring Diagram
GTY678458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
