Home >> Lexus >> 2016 >> CT 200h Base >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Column - Service Information >> Heated Steering Wheel Controller >> Components [08/2014 - ] >> Illustration

Components [08/2014 - ]: Illustration

Fig 1: Heated Steering Wheel Controller Replacement Components With Torque Specifications (1 Of 2)
GTY526382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

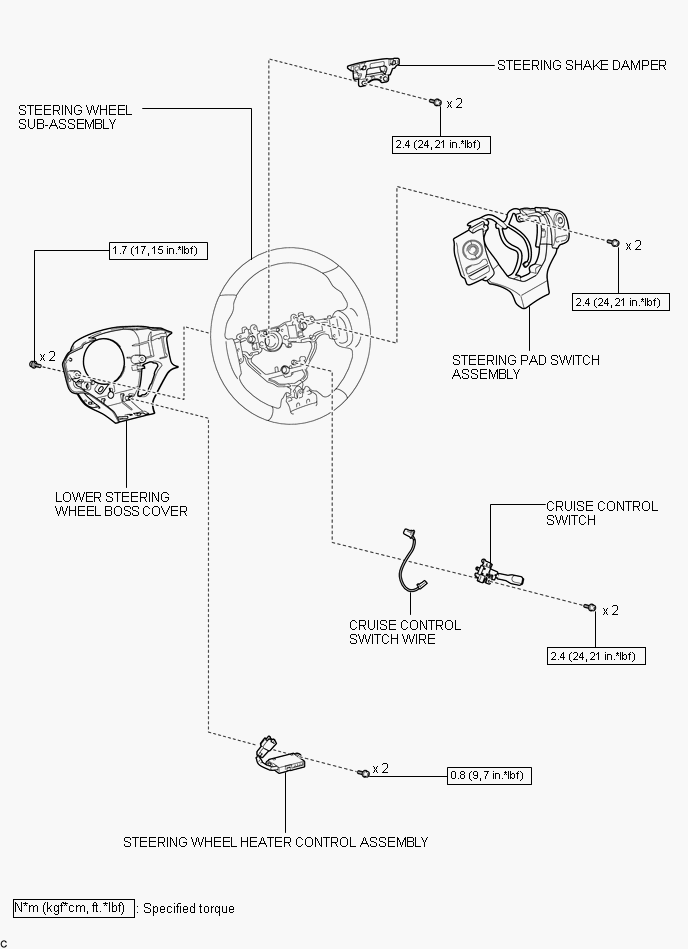

Fig 1: Heated Steering Wheel Controller Replacement Components With Torque Specifications (2 Of 2)
GTY461271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
