Operation Check [08/2015 - ]

HINT:

Before checking the window lock switch operation, make sure that the window lock switch is off (the switch is not pushed in).

Fig 1: Window Lock Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. When the window lock switch of the multiplex network master switch assembly is pushed, check that the front passenger and rear windows are disabled.

   OK

   Front passenger and rear windows are disabled.

2. When the window lock switch is pushed again, check that the front passenger and rear windows can be operated normally.

   OK

   Front passenger and rear windows operate normally.

1. Check that the driver door power window operates as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Power switch on (IG)	Driver side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)

2. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Regulator Switch	Switch Operation	Power Window
   Power switch on (IG) Window lock switch off	Front passenger side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)
   	Rear LH side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)
   	Rear RH side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)

1. Check that the driver door power window operates as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Power switch on (IG)	Driver side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)

2. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Regulator Switch	Switch Operation	Power Window
   Power switch on (IG) Window lock switch off	Front passenger side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)
   	Rear LH side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)
   	Rear RH side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)

1. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Power switch on (IG) Window lock switch off	Front passenger side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)
   	Rear LH side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)
   	Rear RH side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)

1. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Power switch on (IG) Window lock switch off	Front passenger side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)
   	Rear LH side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)
   	Rear RH side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)

1. Check that all the power windows can be operated with the multiplex network master switch assembly and power window regulator switch assemblies (for front passenger side, rear LH and RH sides) after the power switch is turned off.
2. Check that the key-off operation function does not operate after the driver door or front passenger door is opened.

   HINT:

   If the driver door or front passenger door is opened during automatic window operation while the key-off operation function is on, the window will stop operating.

3. Check that all the power windows cannot be operated after more than approximately 43 seconds have elapsed since the power switch was turned off.

• *: This function is set through the customize function, as it is off by default.

1. Check that all power windows operate as follows:
   OK



   Condition	Door Key Cylinder Operation	Power Window
   No key is inside vehicle, and all doors are closed	Held (LOCK) for more than 1.5 seconds	UP (Closes)
   No key is inside vehicle, and all doors are closed	Returned to neutral position	STOP
   No key is inside vehicle, and all doors are closed	Held (UNLOCK) for more than 1.5 seconds	DOWN (Opens)
   No key is inside vehicle, and all doors are closed	Returned to neutral position	STOP

• *: This function is set through the customize function, as it is off by default.

1. Check that all power windows operate as follows when operating the transmitter:
   OK



   Condition	Transmitter Operation	Power Window
   No key is inside vehicle, and all doors are closed and locked	UNLOCK switch pressed for more than 3.0 seconds	DOWN (Opens)
   No key is inside vehicle, and all doors are closed and locked	UNLOCK switch released	STOP

1. Check the basic function.
   WARNING:

   Do not put your fingers between the door frame and door glass to check the jam protection function. Also, prevent any part of your body from being caught during inspection.

   HINT:

   The jam protection function is operative during both the auto up and manual up operations while the hybrid control system is started or the power switch is on (IG), and also 43 seconds have elapsed after the power switch is turned off.

   1. Fully open the window.
   2. Set a thick book wrapped with a piece of cloth near the window fully closed position.

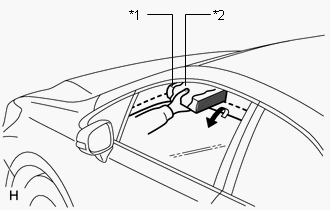

      Fig 2: Checking Jam Protection Function

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Thick Book
      *2	Cloth

   3. Operate the auto up or manual up function to check that the power window goes down after the book is caught between the window and door frame, and stops when the opening reaches approximately 200 mm (7.87 in.).

      HINT:

      The power window moves down approximately 125 mm (4.93 in.). However, when the opening does not reach 200 mm (7.87 in.), the power window continues to go down until the opening reaches 200 mm (7.87 in.) or until approximately 5 seconds elapse.

   4. While the power window is moving down, check that the door glass cannot be raised when the power window switch is used.

1. Check the basic function.
   Fig 3: Checking Catch Protection Function

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   The catch protection function is operative during both the auto down and manual down operations while the engine is running or the power switch is on (IG), and also for approximately 43 seconds after the power switch is turned off.

2. Fully close all of the power windows.
3. Operate the auto down or manual down function to open the power window, grasp the upper edge of the door glass with one or two hands and check that the power window stops.

   HINT:

   After the catch protection function has operated when an auto down or manual down operation was performed, the catch protection function will not operate if the manual down operation is performed again within approximately 4 seconds.

1. Check the LED illumination (multiplex network master switch assembly).
   1. Check that the LEDs located in the multiplex network master switch assembly illuminate when the power switch is turned on (IG).
2. Check the LED illumination (power window regulator switch assembly (for front passenger door)).
   1. Check that the LED located in the power window regulator switch assembly (for front passenger door) illuminates when the power switch is turned on (IG).
3. Check the LED illumination (rear power window regulator switch assembly (for LH door and RH door)).
   1. Check that the LED located in each rear power window regulator switch assembly (for LH door and RH door) illuminates when the power switch is turned on (IG).
