Headlight Light Control ECU Sub Assembly RH Connector End View (A7)

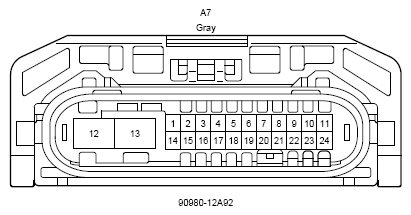

Fig 1: Headlight Light Control ECU Sub Assembly RH Connector End View (A7)

G10338889

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
