Components [10/2014 - ]

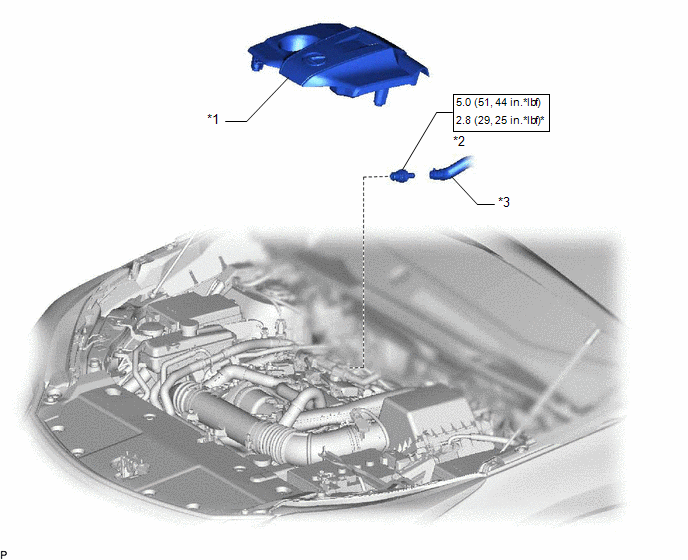

Fig 1: PCV Valve Replacement Components With Torque Specifications
GTY496009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 ENGINE COVER SUB-ASSEMBLY *2 PCV VALVE SUB-ASSEMBLY
*3 NO. 2 PCV HOSE - -
N*m (kgf*cm, ft.*lbf) : Specified torque * For use with ball joint lock nut wrench
