DTC B2278: Engine Switch Circuit Malfunction [08/2013 - ]: Wiring Diagram

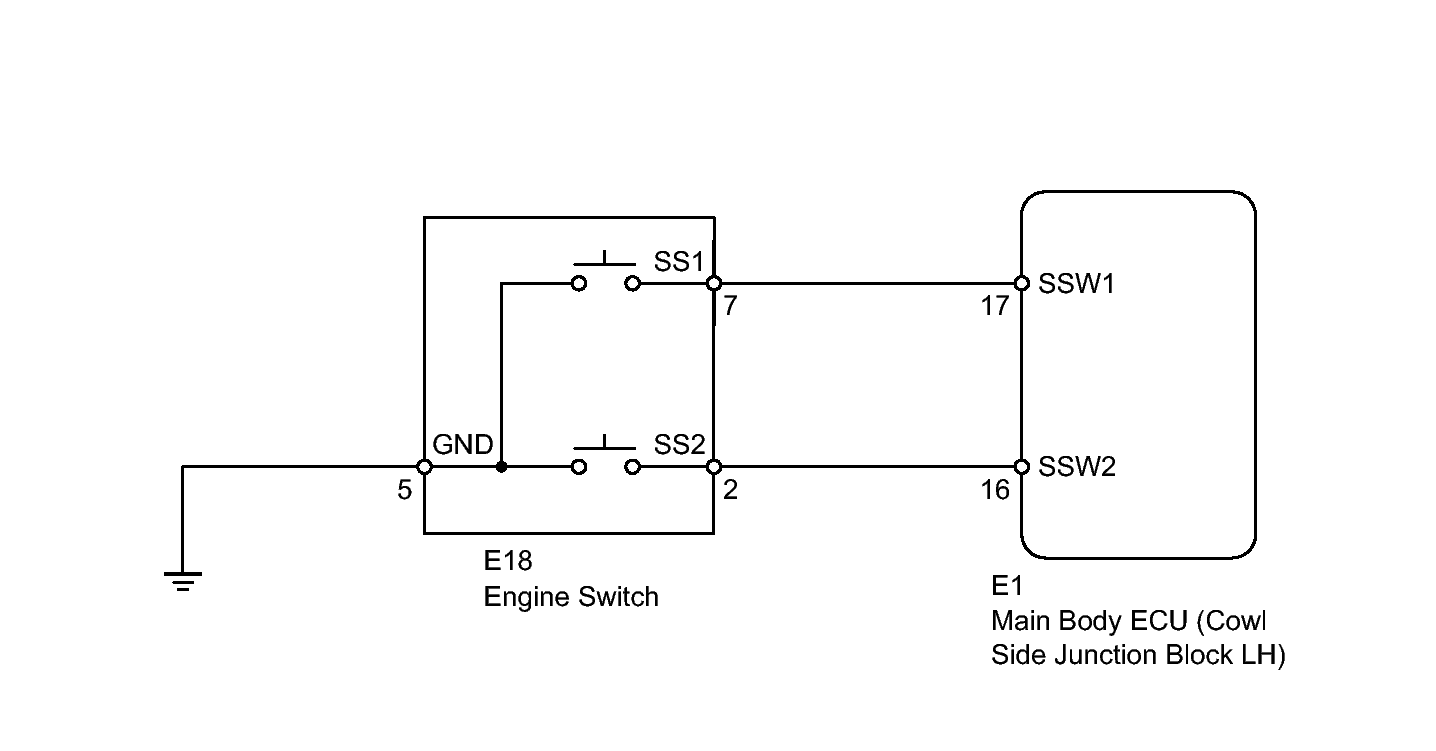

Fig 1: Engine Switch Circuit Malfunction - Wiring Diagram

GTY109948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
