System Diagram [08/2013 - ]

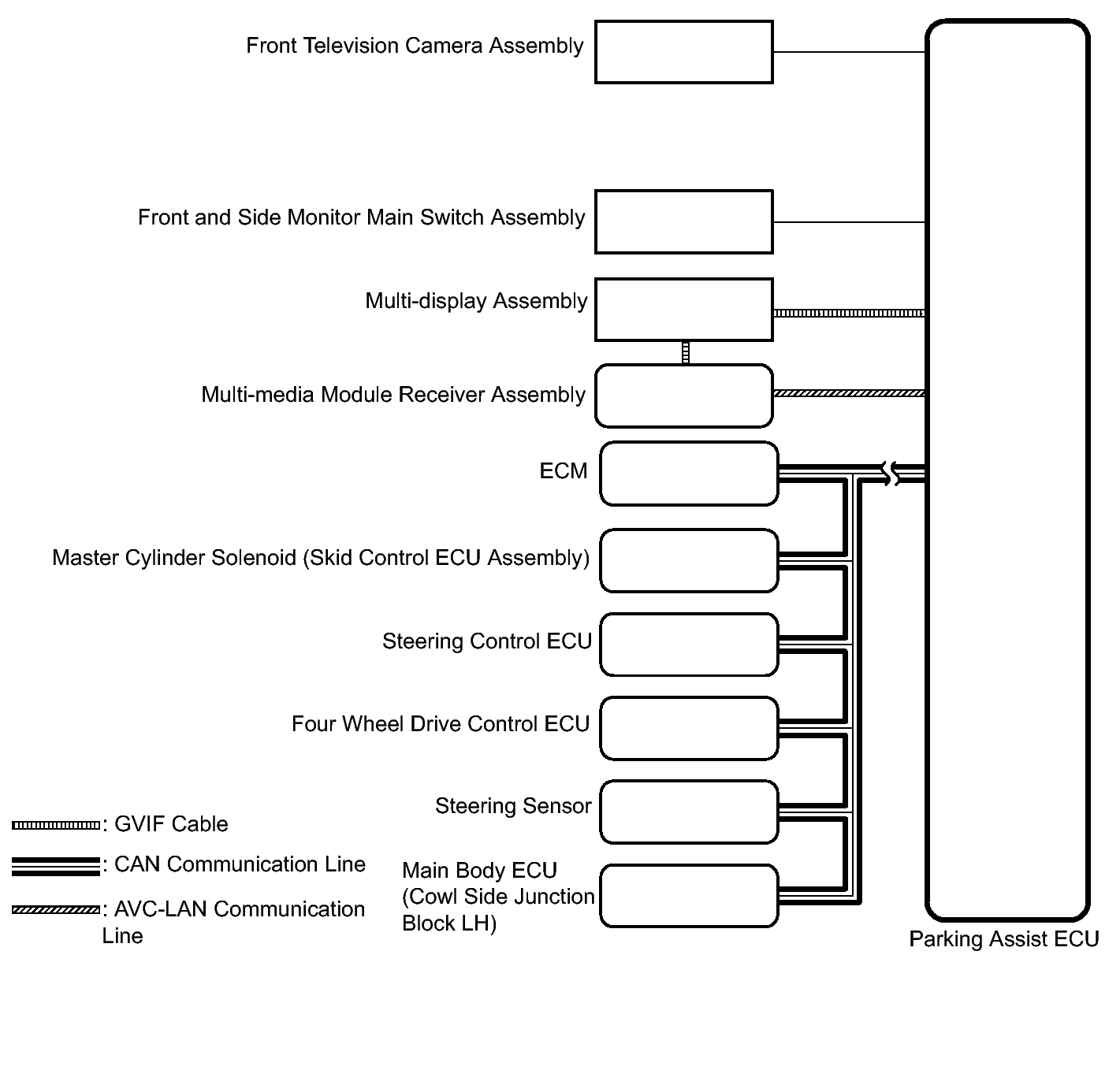

Fig 1: Wide View Front Monitor System Diagram
GTY396940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender ECU Receiver ECU Signal Line
Multi-media Module Receiver Assembly Parking Assist ECU Vehicle angle data AVC-LAN
Parking Assist ECU Multi-display Assembly Display Digital communication cable
Steering Sensor Parking Assist ECU Steering angle CAN
Steering Control ECU Parking Assist ECU
  • VGRS relative angle
  • Vehicle information
 CAN
Master Cylinder Solenoid (Skid Control ECU Assembly) Parking Assist ECU
  • Inner brake information
  • ABS ACT information
 CAN
Four Wheel Drive Control ECU Parking Assist ECU L4 Condition signal CAN
ECM Parking Assist ECU
  • Shift position information
  • 2WD/4WD information
  • Vehicle information
 CAN
