DTC U1119: Lost Communication with Object Recognition ECU (CAN); DTC U1119: Lost Communication with Object Recognition ECU (Serial); DTC U1120: Lost Communication with Object Recognition Camera [10/2014 - ]: Wiring Diagram

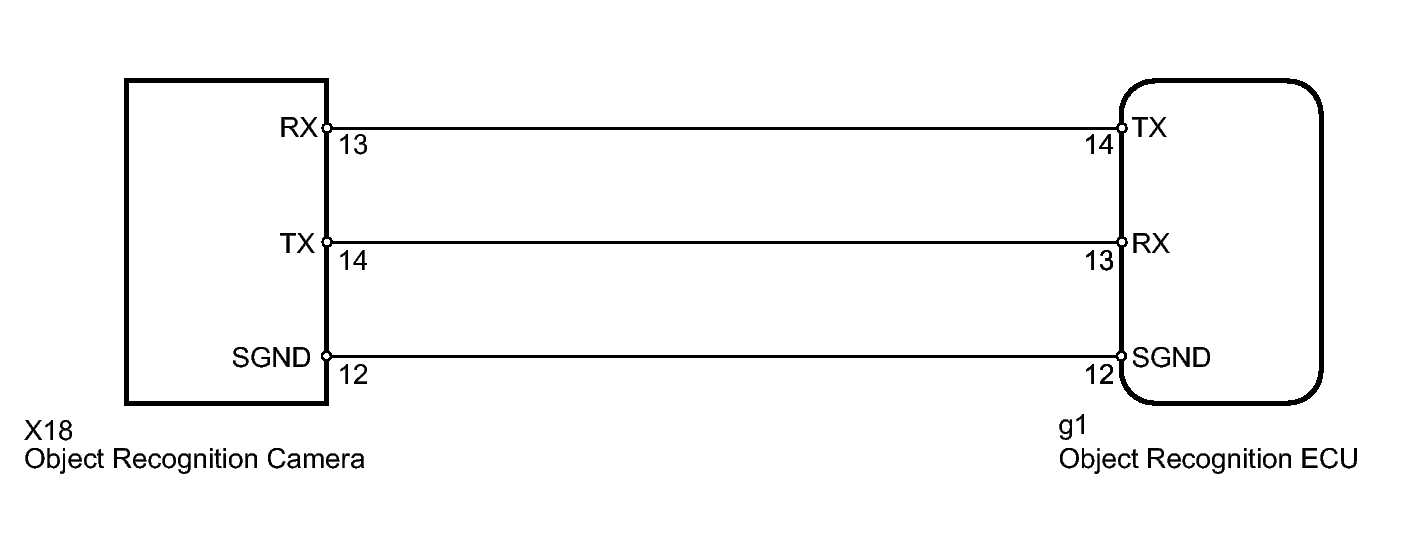

Fig 1: Object Recognition ECU & Object Recognition Camera Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
