VC Output Circuit [10/2014 - ]: Wiring Diagram

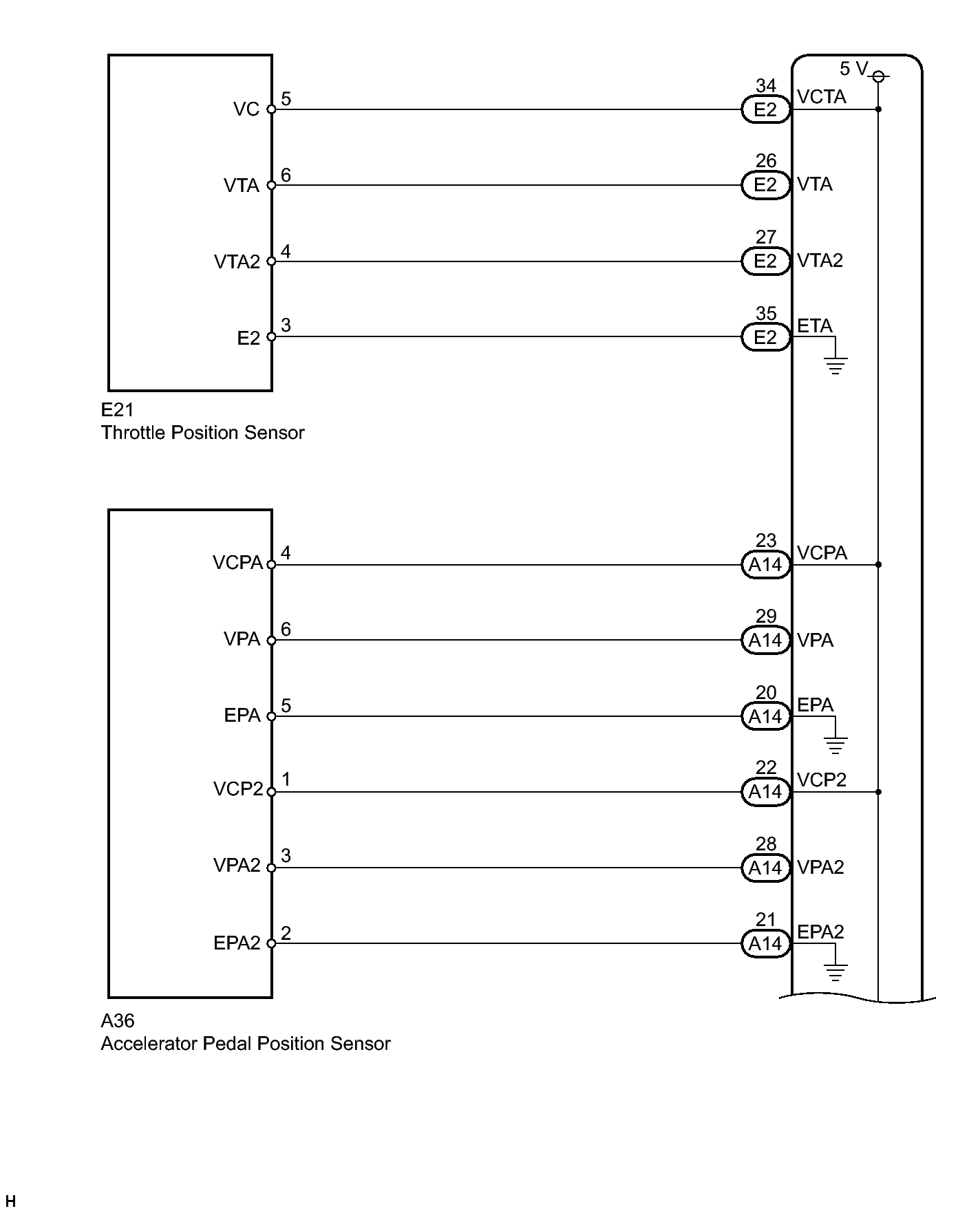

Fig 1: VC Output Circuit - Wiring Diagram (1 Of 3)
GTY288118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: VC Output Circuit - Wiring Diagram (2 Of 3)
GTY405057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: VC Output Circuit - Wiring Diagram (3 Of 3)
GTY280405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
