DTC B2285: Steering Lock Position Signal Circuit Malfunction; DTC B2288: Steering Lock Signal Circuit Malfunction [10/2014 - ]: Wiring Diagram

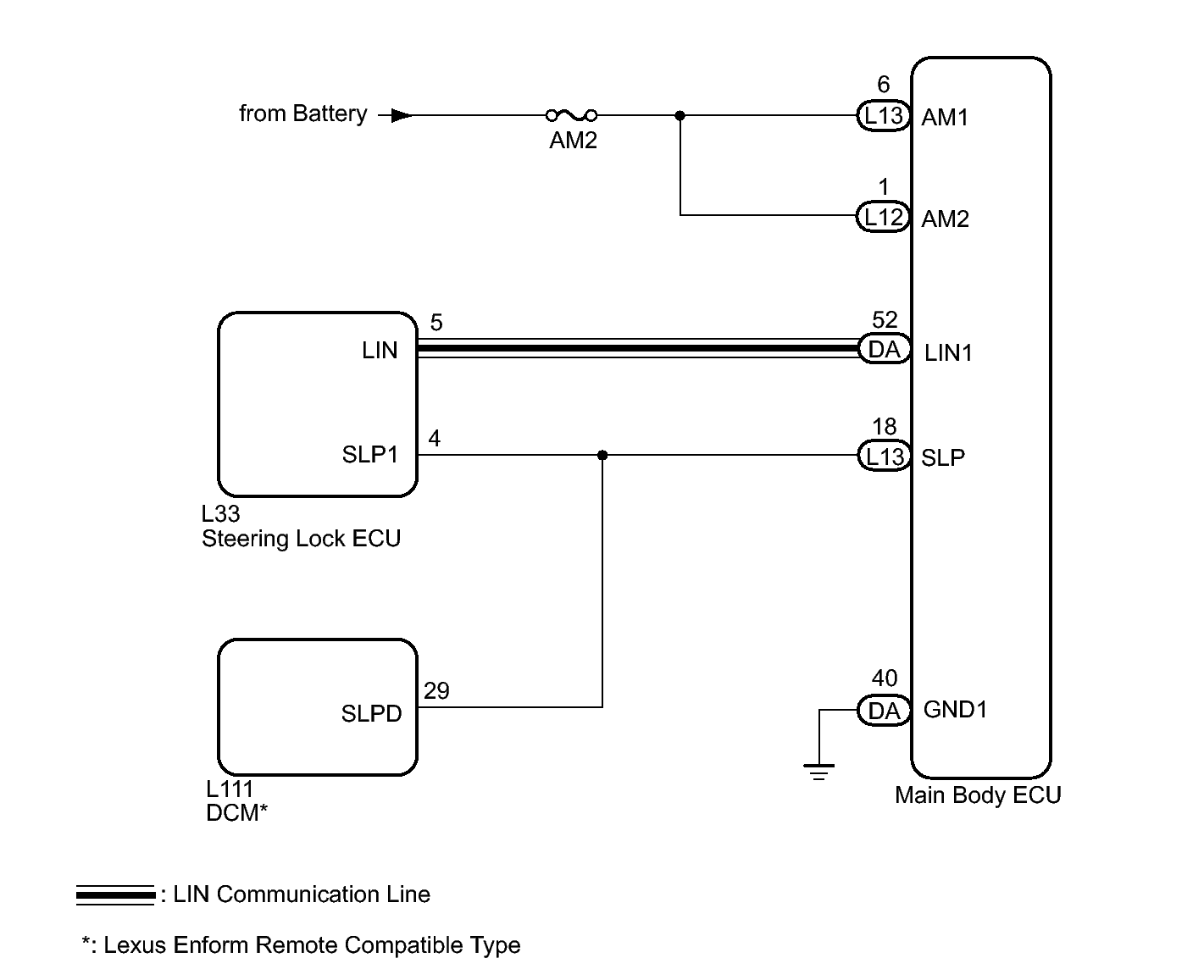

Fig 1: Main Body ECU Wiring Diagram
GTY513050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
