Steering Pad Switch Circuit [10/2014 - ]: Wiring Diagram

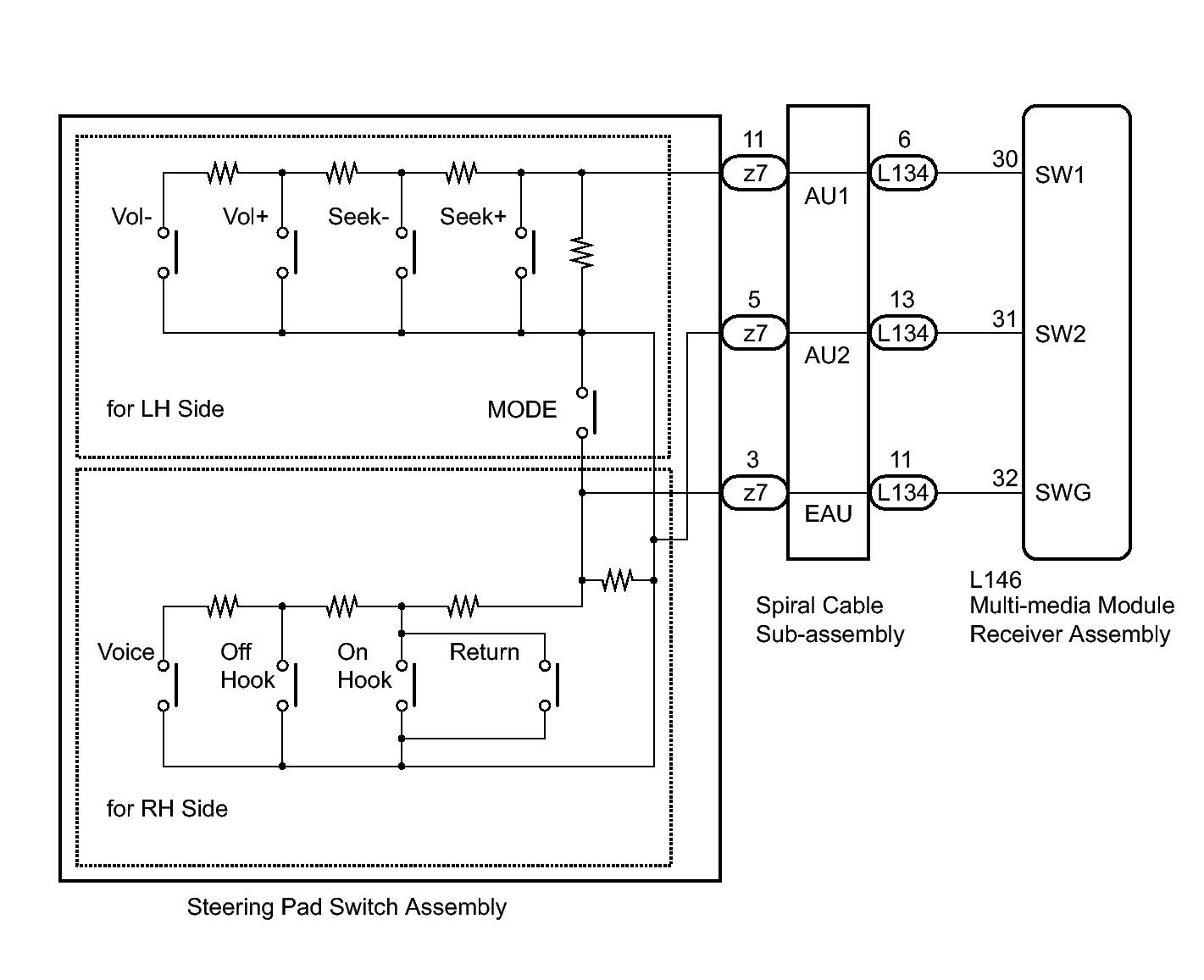

Fig 1: Steering Pad Switch Assembly Circuit Diagram

GTY519625

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
