DCM Data Signal Circuit between Navigation ECU and DCM [10/2014 - ]: Wiring Diagram

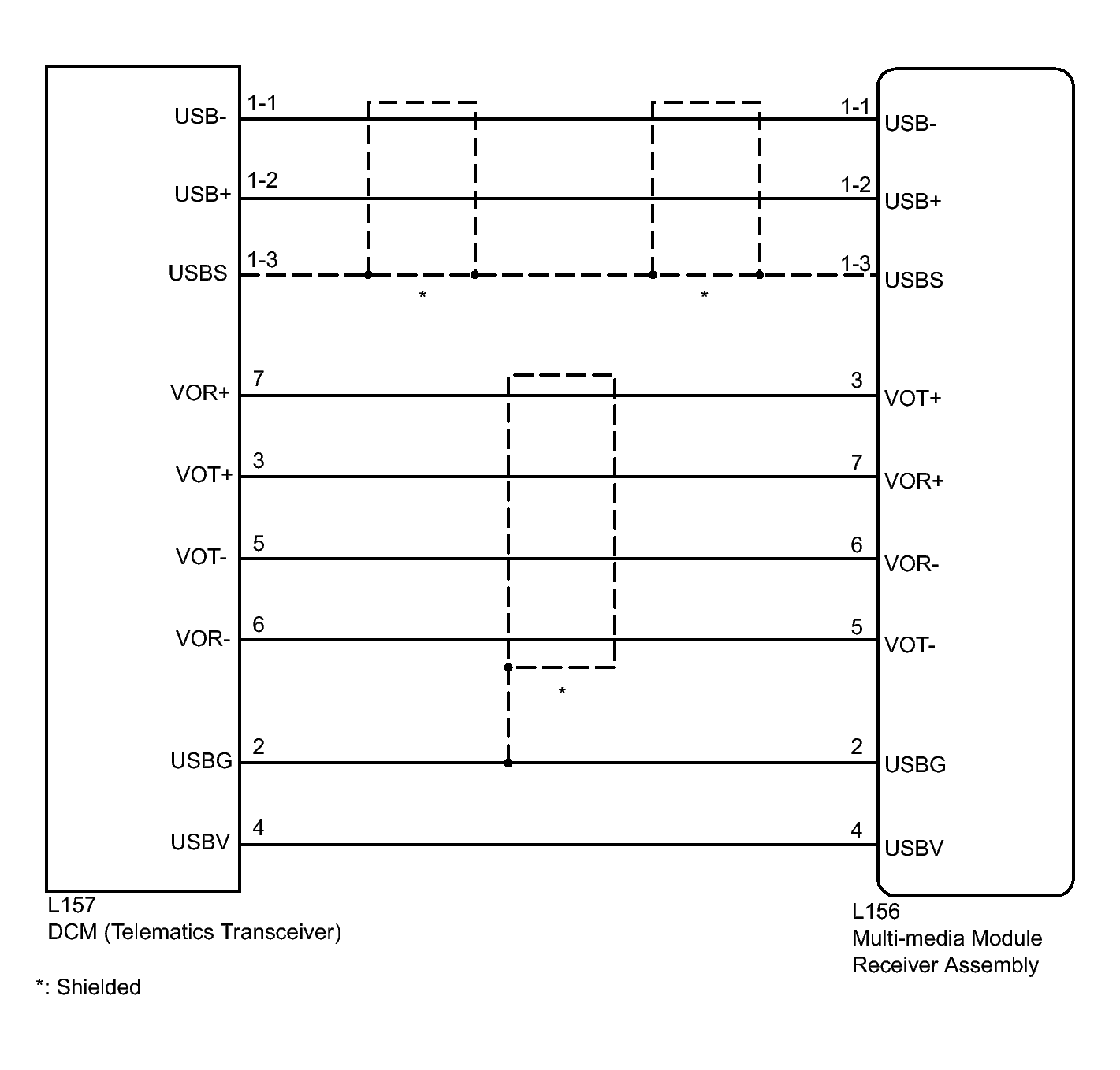

Fig 1: DCM (telematics Transceiver) To Multi-Media Module Receiver Assembly Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
