DTC U0130: Lost Communication with Steering Effort Control Module [10/2014 - ]: Wiring Diagram

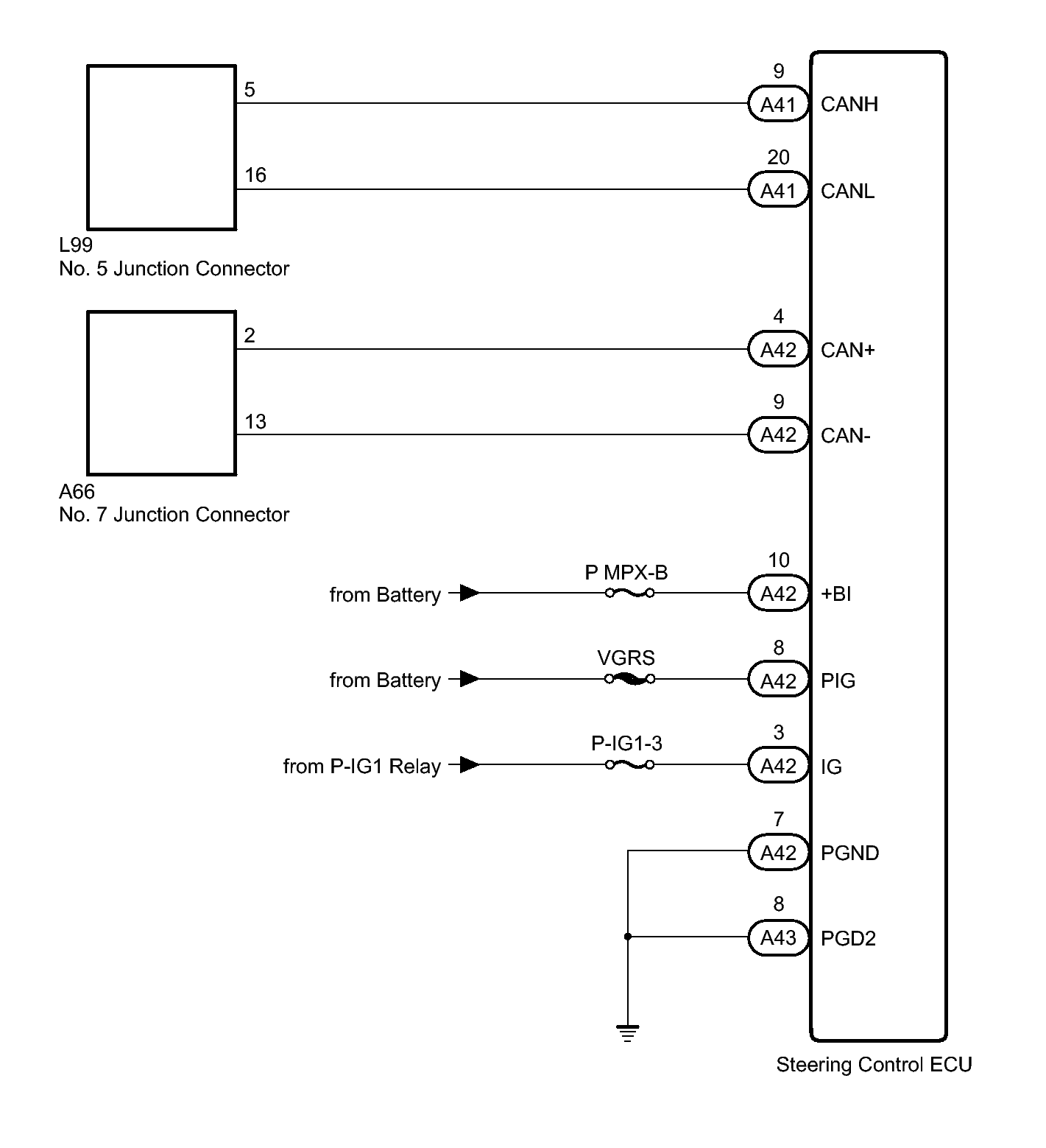

Fig 1: Steering Control ECU Wiring Diagram

GTY412916

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
