System Diagram [08/2013 - ]

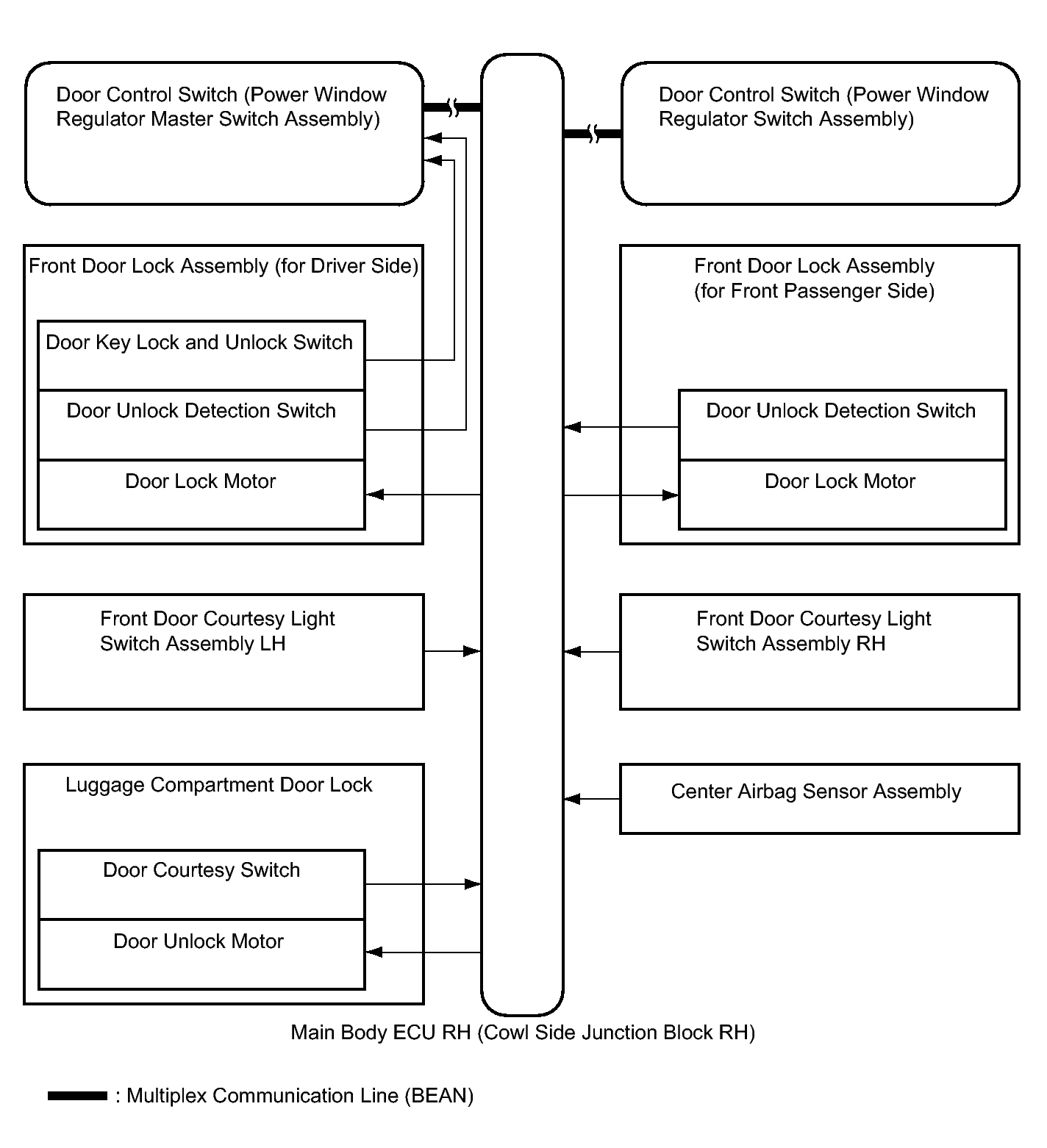

Fig 1: Power Door Lock Control System Diagram
GTY286614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Communication Method
Power Window Regulator Master Switch Assembly Main Body ECU RH (Cowl Side Junction Block RH)
  • Driver side door control switch signal
  • Driver side door unlock detection switch signal
  • Driver side door key lock and unlock switch signal
 BEAN
Power Window Regulator Switch Assembly Main Body ECU RH (Cowl Side Junction Block RH)
  • Front passenger side door control switch signal
 BEAN
Main Body ECU RH (Cowl Side Junction Block RH) Power Window Regulator Master Switch Assembly Door unlock detection switch signal (except driver side) BEAN
