Removal [04/2013 - ]: Procedure

  1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 5 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 5 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 5 [09/2020 - ]

  2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

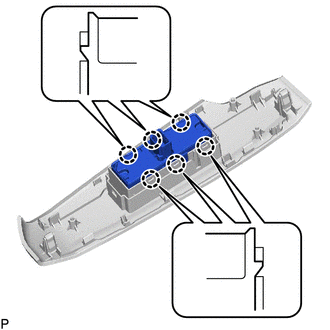

    1. Disengage the 6 claws to remove the power window regulator switch assembly from the front door armrest base panel.
      GTY457425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
