Components [04/2013 - 10/2016]

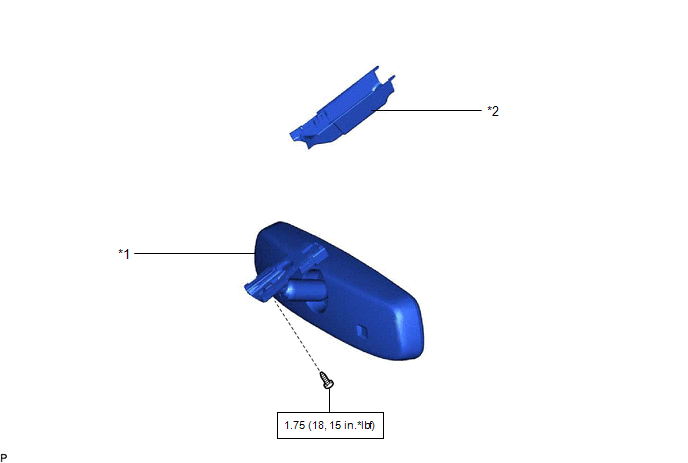

Fig 1: Rear View Mirror Replacement Components With Torque Specifications [04/2013 - 10/2016]
GTY464155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INNER REAR VIEW MIRROR ASSEMBLY *2 INNER REAR VIEW MIRROR STAY HOLDER COVER
N.m (kgf/cm, ft.lbf): Specified torque - -
