Removal [04/2013 - 10/2016]: Procedure

  1. REMOVE RAIN SENSOR COVER (w/o Lane Departure Alert System)

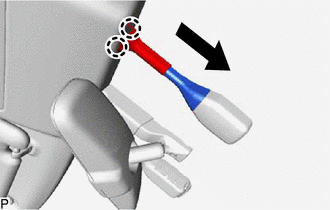

    1. Disengage the 2 claws and slide the rain sensor cover as shown in the illustration.
      GTY468144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

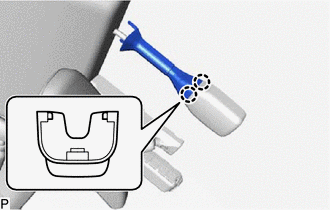

    2. Disengage the 2 claws to remove the rain sensor cover.
      GTY468152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LANE DEPARTURE WARNING CAMERA COVER (w/ Lane Departure Alert System)

    Refer to PROCEDURE - Step 1

  3. REMOVE RAIN SENSOR

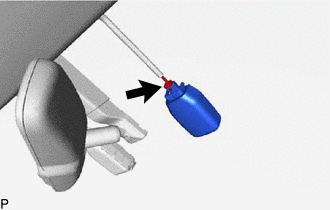

    1. Disconnect the connector.
      GTY468154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Release the stopper by pulling the stopper down and remove the rain sensor as shown in the illustration.
      GTY458492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
  4. CLEAN WINDSHIELD GLASS

    HINT:

    • The rain sensor tape is reusable. Only replace the tape if it is damaged or contaminated with foreign mattes.
    • Check that there is no rain sensor tape residue remaining on the windshield glass. If there is, remove the residue before installing the rain sensor.
    • If there is any rain sensor tape residue remaining on the windshield glass, replace the tape.
