Components [04/2013 - ]

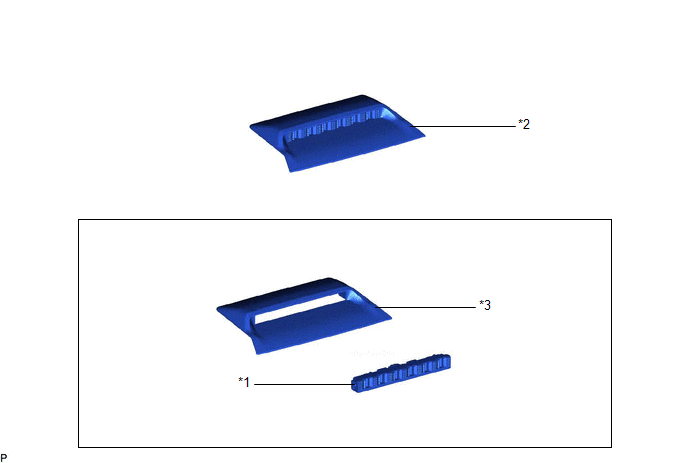

Fig 1: High Mounted Stop Light Assembly Replacement Components
GTY469466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTER STOP LIGHT ASSEMBLY *2 CENTER STOP LIGHT ASSEMBLY WITH COVER
*3 CENTER STOP LIGHT COVER - -
