System Diagram [04/2013 - 09/2020]

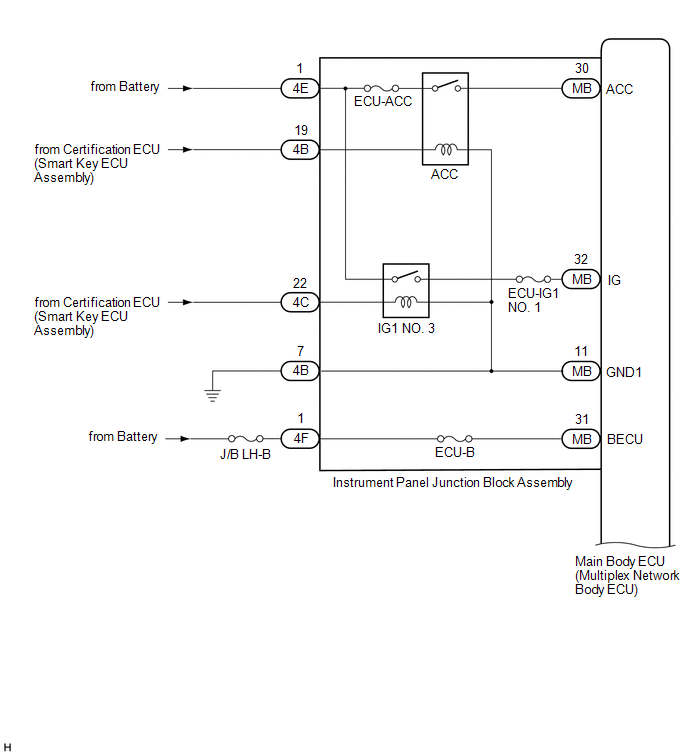

    Fig 1: Lighting System (Interior) Diagram (1 Of 8)
    GTY470704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

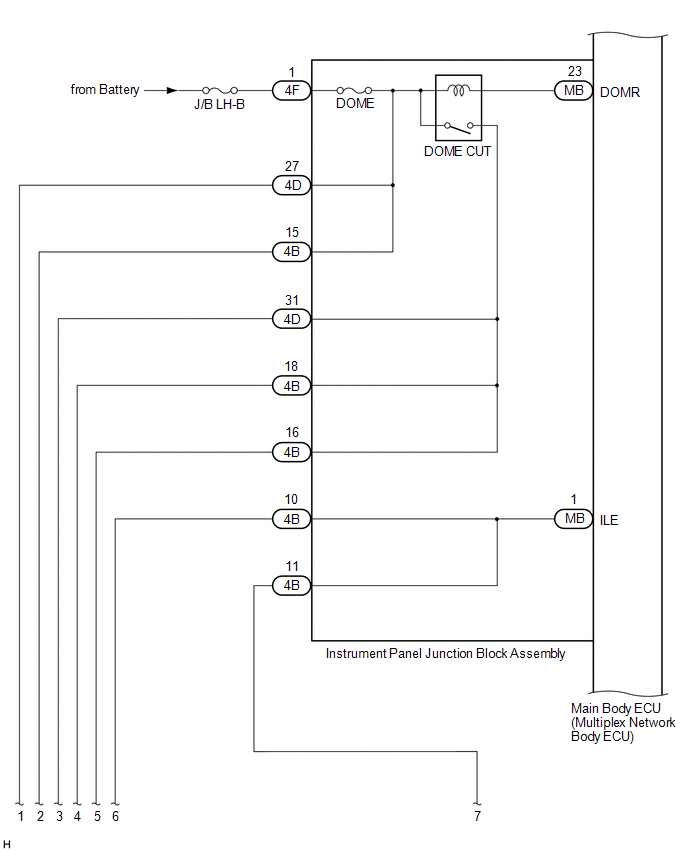

    Fig 2: Lighting System (Interior) Diagram (2 Of 8)
    GTY468183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

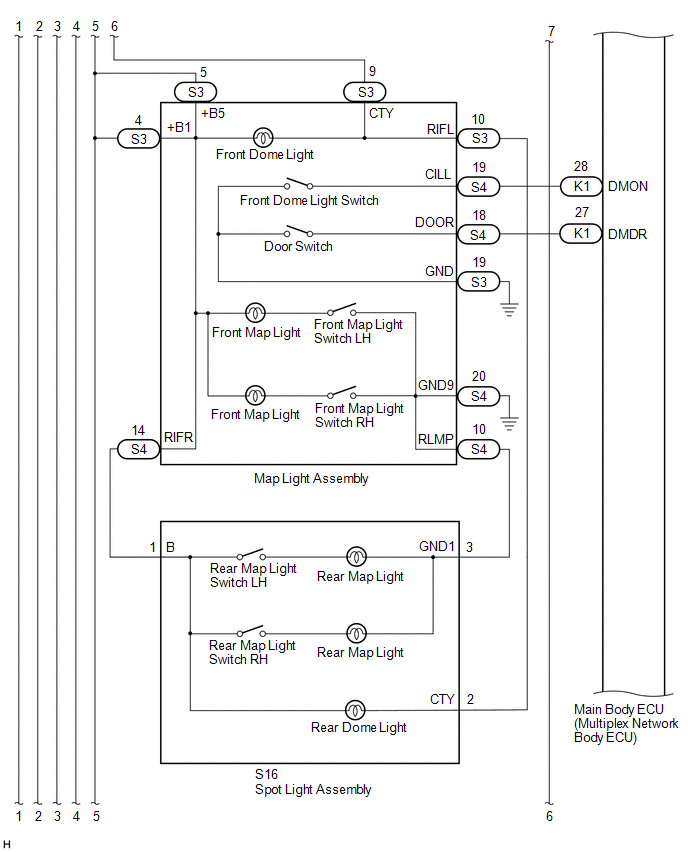

    Fig 3: Lighting System (Interior) Diagram (3 Of 8)
    GTY456810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

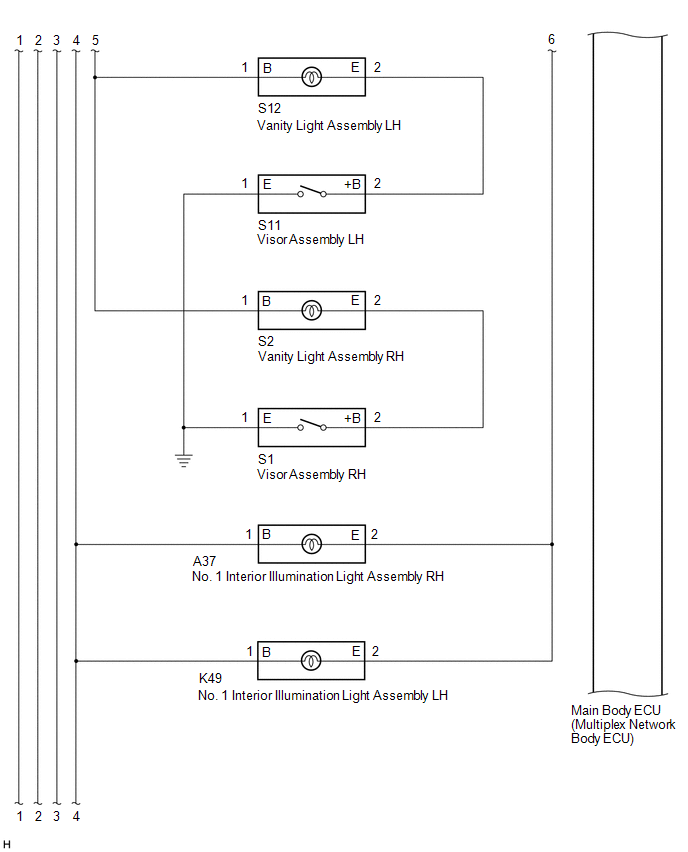

    Fig 4: Lighting System (Interior) Diagram (4 Of 8)
    GTY469734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

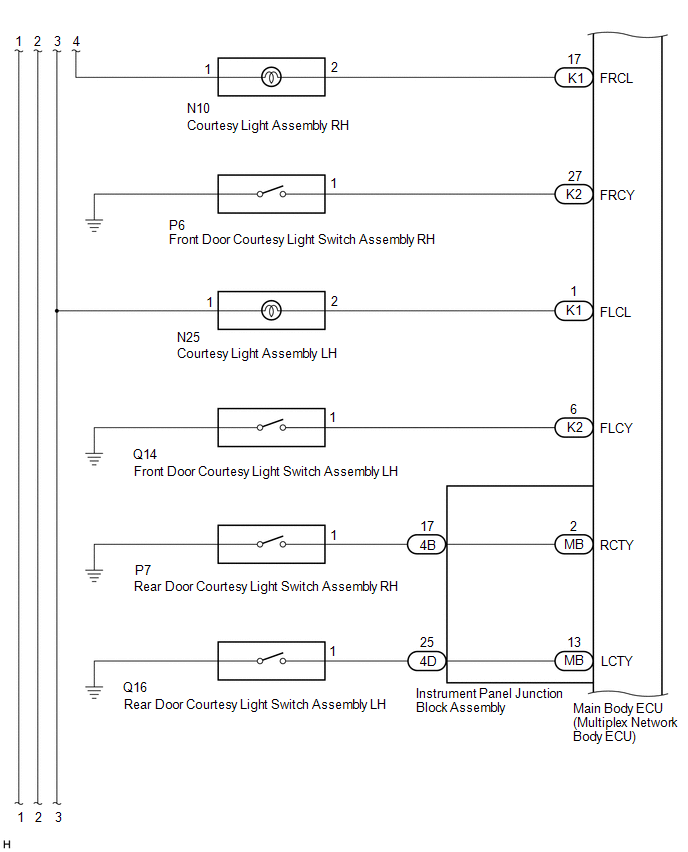

    Fig 5: Lighting System (Interior) Diagram (5 Of 8)
    GTY465238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

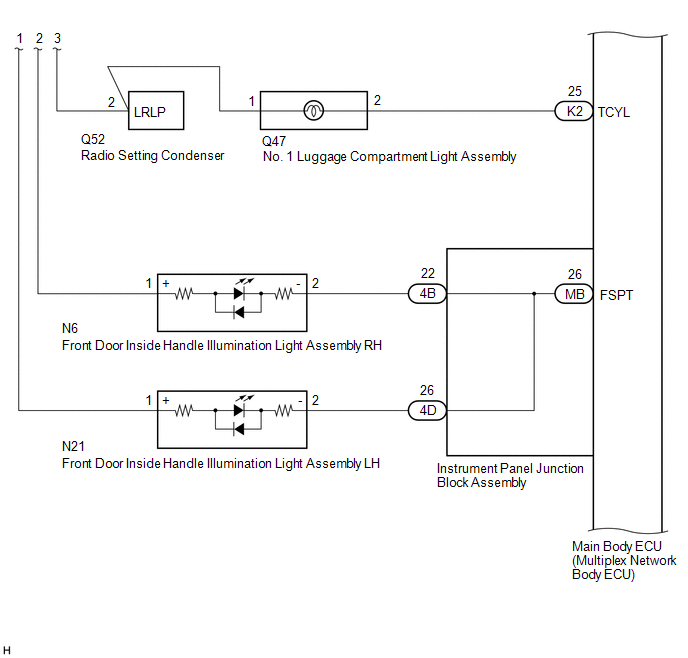

    Fig 6: Lighting System (Interior) Diagram (6 Of 8)
    GTY467972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

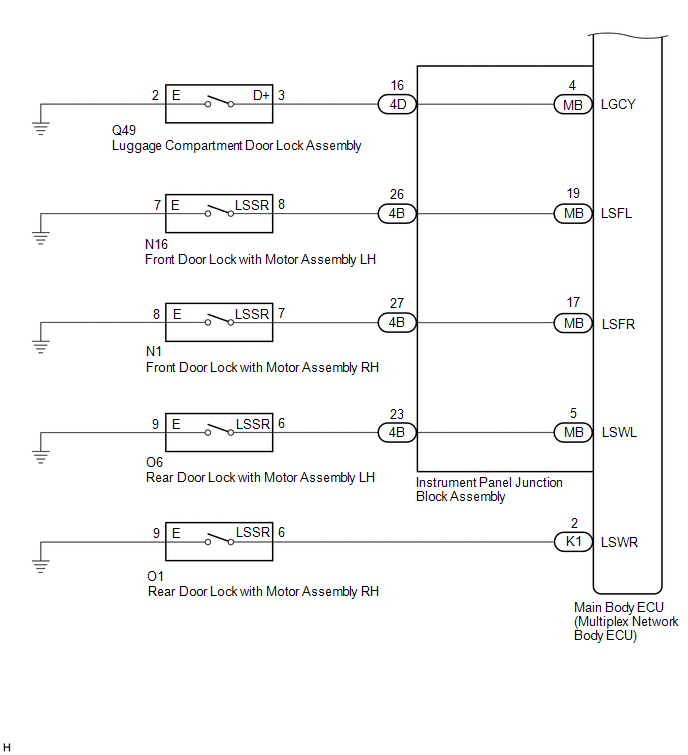

    Fig 7: Lighting System (Interior) Diagram (7 Of 8)
    GTY458893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 8: Lighting System (Interior) Diagram (8 Of 8)
    GTY470508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
