Components [09/2020 - ]

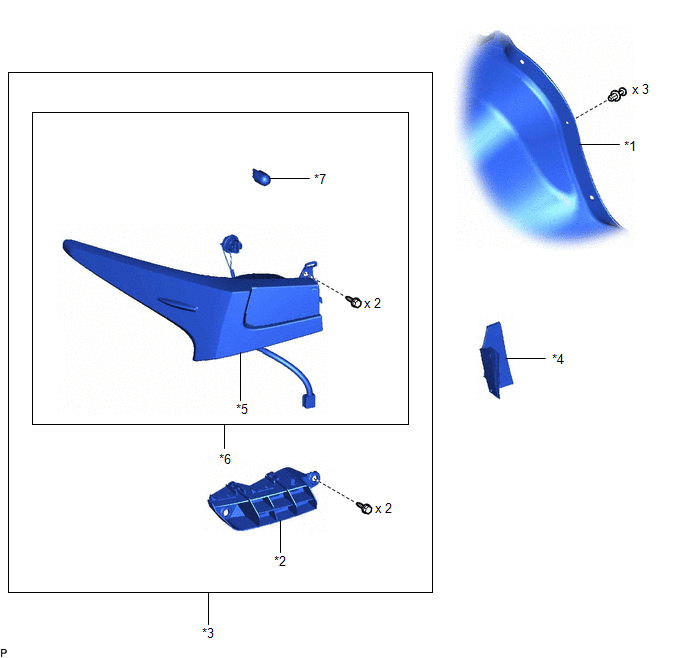

Fig 1: Rear Combination Light Assembly Replacement Components [09/2020 - ]
GTY970848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LUGGAGE COMPARTMENT TRIM COVER *2 REAR BUMPER UPPER RETAINER
*3 REAR COMBINATION LIGHT ASSEMBLY *4 REAR COMBINATION LIGHT COVER
*5 REAR COMBINATION LIGHT LENS AND BODY *6 REAR COMBINATION LIGHT SUB-ASSEMBLY
*7 REAR TURN SIGNAL LIGHT BULB - -
